Left Front Window Motor Connector End View

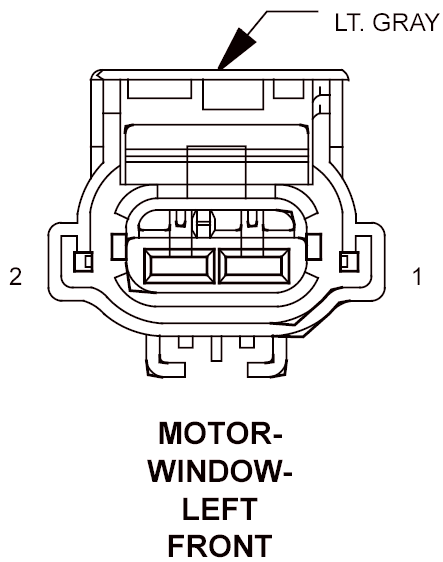

MOTOR-WINDOW-LEFT FRONT - LT. GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q21 14WT
LEFT FRONT WINDOW DRIVER (DOWN)
2
Q11 14LB
LEFT FRONT WINDOW DRIVER (UP)
Courtesy of CHRYSLER CORP.
