Installation

INSTALLATION

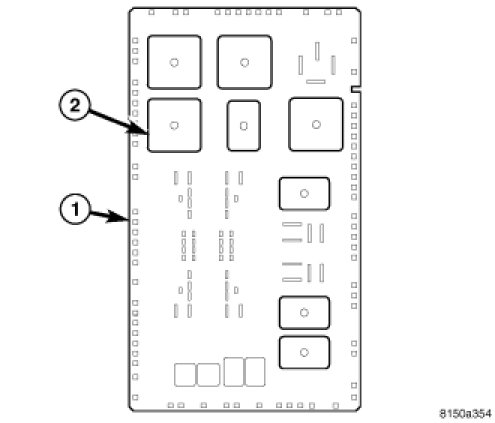

1. Position the EBL relay (2) into the proper receptacle of the junction block (JB) (1) located in the passenger compartment.
2. Align the EBL relay terminals with the terminal cavities in the JB receptacle and push down firmly on the relay until the terminals are fully seated.
3. Install the JB Installation.
4. Reconnect the negative battery cable.
