Installation

INSTALLATION

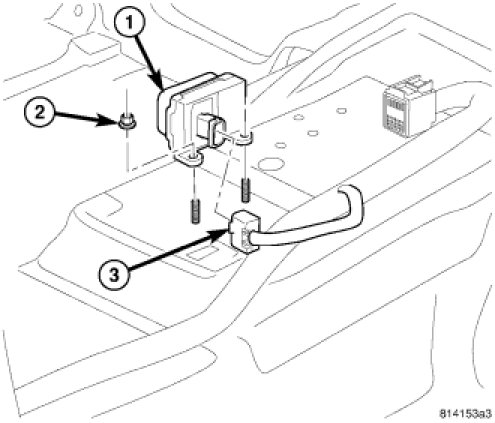

1. Install the dynamics sensor (1) to the vehicle.
2. Install the electrical connector (3)
3. Install the two retaining nuts (2) and tighten to 9 Nm (80 in. lbs.).
4. Install the floor console.
