Removal

REMOVAL

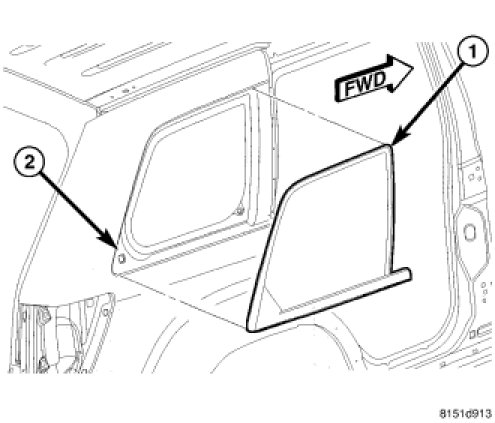

NOTE: Grand Cherokee (WK) shown, Commander (XK) similar.

1. Before proceeding with the following repair procedure, review all warnings and cautions Service Precautions.
2. Remove the quarter panel trim from the side of the vehicle being serviced . Quarter Trim Panel - Removal

CAUTION: Be careful not to damage painted surfaces when removing moldings or cutting urethane around the windshield.

3. Using razor knife, cut the urethane adhesive that secures the quarter glass to window fence.
4. Carefully push the quarter window glass from the opening.
