P0685-Auto Shutdown Relay Control Circuit
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

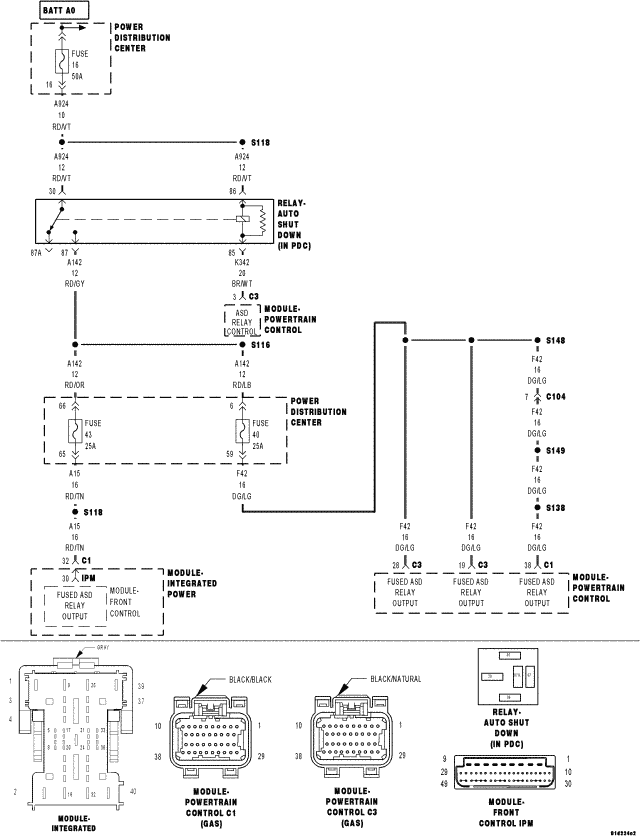

Fig 1: Powertrain Control Module Circuit Schematic
Courtesy of CHRYSLER LLC
