Shock Springs

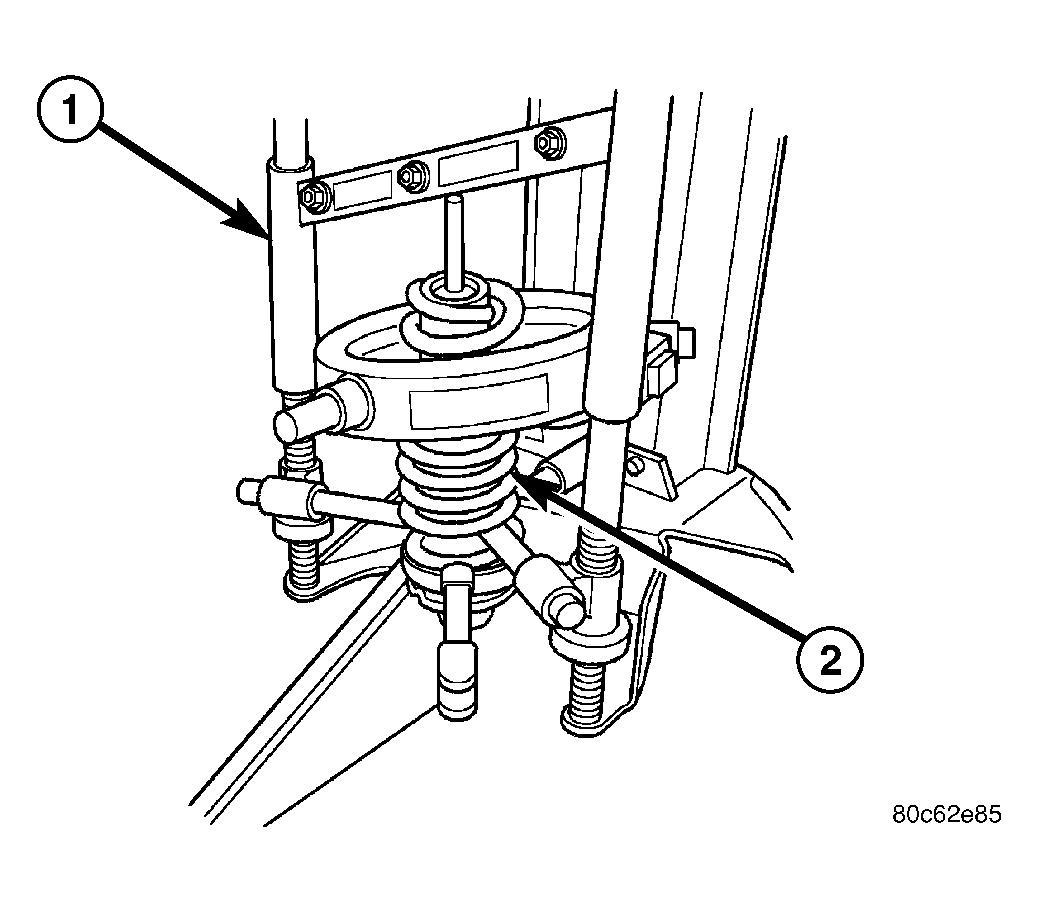

Fig 1: Spring Compressor
GC0026783Courtesy of CHRYSLER LLC
1 - SPRING COMPRESSOR
2 - SPRING
  1. Compress the spring (2).
    Fig 2: Shock Orientation
    GC0026782Courtesy of CHRYSLER LLC
  2. Install the lower isolator (7).
  3. Position the shock (8) into the coil spring (6) make sure the jounce bumper (4) is on the shock rod  .
  4. Install the upper isolator (5).
    NOTE: For proper orientation the nub hole (1) in the upper shock plate (3) must be 180° in a centerline from the bracket (9) at the bottom of the shock (8).
  5. Install the upper shock mount (3).
  6. Install the shock upper mounting nut (2) Tighten to 39 N.m (25 ft. lbs.).
  7. Decompress the spring.
  8. Remove the shock assembly from the spring compressor tool (1).
  9. Install the shock assembly. See INSTALLATION .
