Coil Spring

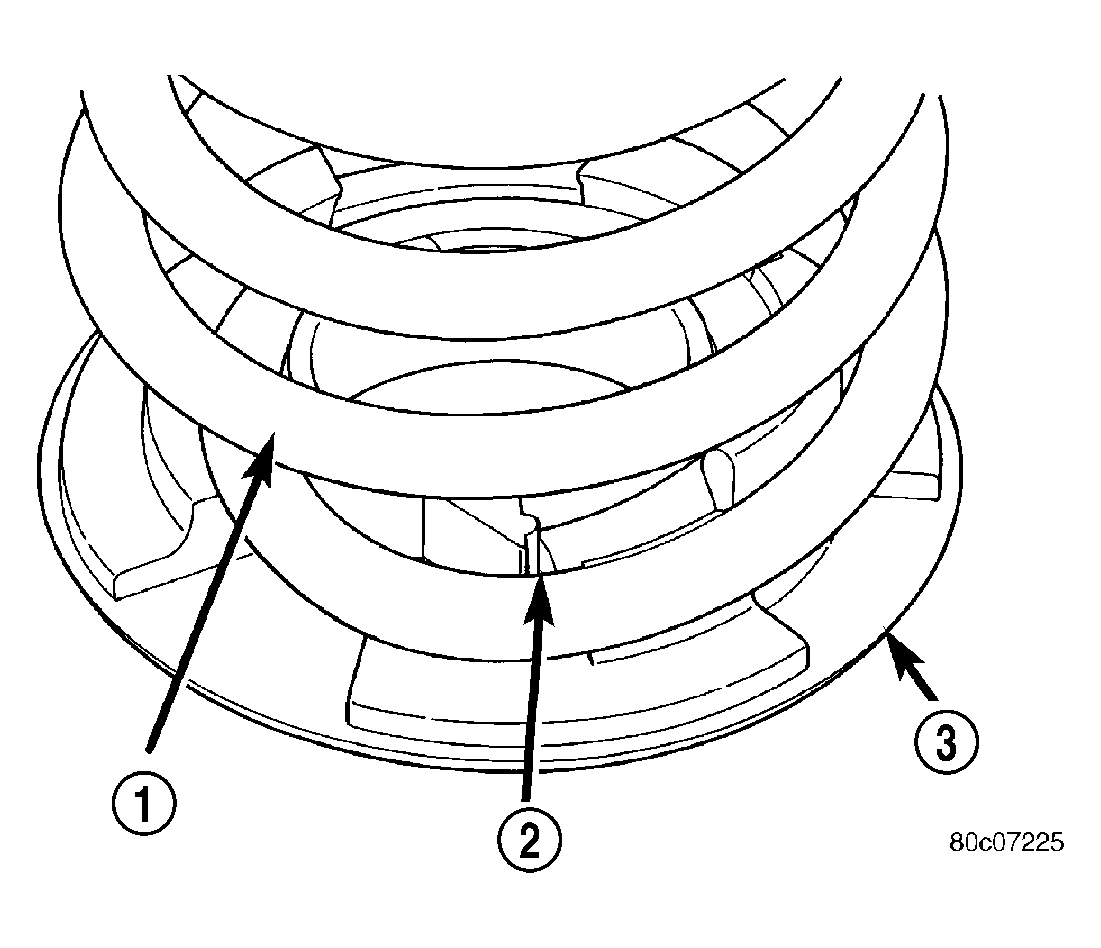

Courtesy of CHRYSLER LLC
| 1 - LOWER ISOLATOR |
| 2 - SPRING LOCATOR |
| 3 - COIL SPRING |
- Install the upper isolator on the spring seat on body.
- Install the lower isolator (3) on the axle bracket.
- Pull down on the axle and position the coil spring (1) in the lower isolator.

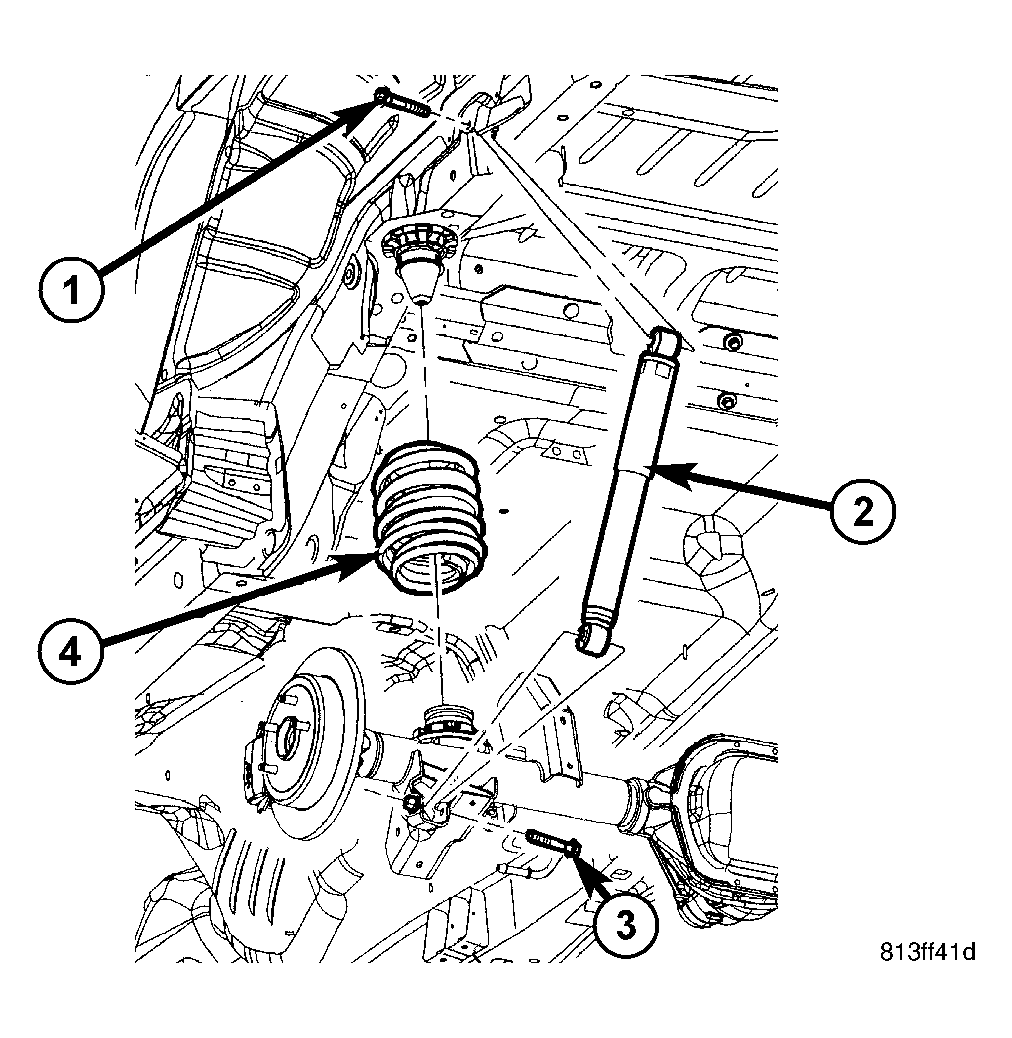

Courtesy of CHRYSLER LLC
| 1 - UPPER SHOCK BOLT |
| 2 - SHOCK |
| 3 - LOWER SHOCK BOLT |
| 4 - SPRING |
- Raise the axle with the hydraulic jack.
- Install the shock absorber (2) to the axle bracket and tighten to 115 N.m (85 ft. lbs.).
- Install the stabilizer bar link to the body rail, tighten to 102 N.m (75 ft. lbs.).
- Install the wheel and tire assemblies.
- Remove the supports and lower the vehicle.
