Heated Seat Module

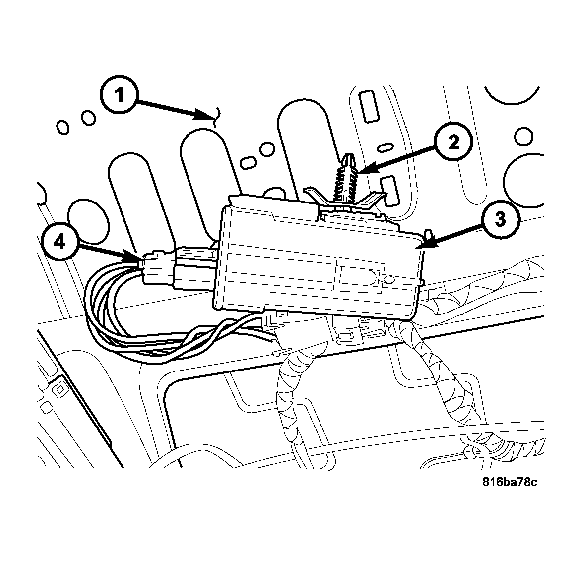

Fig 1: Locating Heated Seat Module
GC0043475Courtesy of CHRYSLER LLC
CAUTION: The Heated Seat Module mounting tab can be damaged during module removal and installation. Use care to properly align tab to prevent binding that could result in tab breakage.
  1. Position the right front seat to the full rearward position.
  2. Disconnect and isolate the battery negative cable.
  3. Disconnect the wire harness connector (4) from the heated seat module (3).
  4. Unsnap the heated seat module retaining tab (2) from the seat pan (1).
  5. Remove the heated seat module (3) from the vehicle.
