Module, Engine Control: Removal: Removal
WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

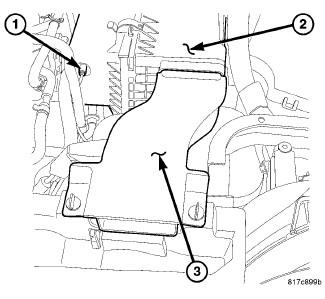

- Remove air inlet duct (3).
- Disconnect negative battery cable.
- Disconnect vacuum hose (1).
- Remove air cleaner housing assembly (2). Refer to Engine/Air Intake System/BODY, Air Cleaner - Removal .
- Disconnect both ECM (2) electrical connectors by pulling tabs at ends of connectors.
- Remove ECM bracket retaining bolts and remove ECM (2) and bracket assembly from vehicle.
- Remove ECM to bracket retaining nuts and remove ECM from bracket.
