Module-Powertrain Control: Removal: Removal

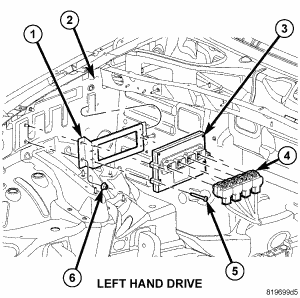

Fig 1: PCM LOCATION - LEFT HAND DRIVE
GC0061538Courtesy of CHRYSLER LLC

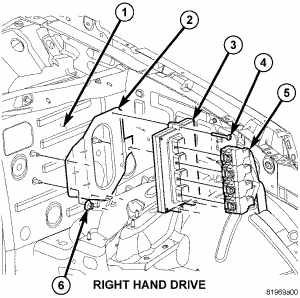

Fig 2: PCM LOCATION - RIGHT HAND DRIVE
GC0061539Courtesy of CHRYSLER LLC
  1. The PCM (Powertrain Control Module) (3-Right Hand Drive), or (3-Left Hand Drive) is located in the engine compartment.
  2. Disconnect negative battery cable.
  3. Disconnect PCM electrical connectors (5-Right Hand Drive), or (4-Left Hand Drive).
  4. Remove PCM mounting screws (4-Right Hand Drive), or (5-Left Hand Drive).
  5. Remove PCM (3-Right Hand Drive), or (3-Left Hand Drive) from vehicle.
