Installation

3.7L

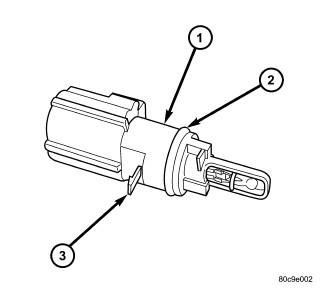

1. Check condition of sensor o-ring (2).
2. Clean sensor mounting hole in intake manifold.
3. Position sensor into intake manifold and rotate clockwise until past release tab.
4. Install electrical connector.
