Light Rain Sensor Module (LRSM) - Installation

INSTALLATION

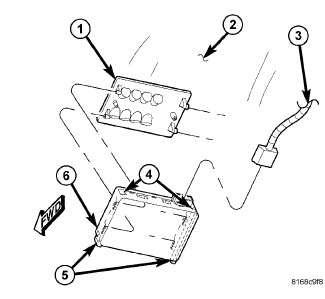

1. Be certain that the two sliding cam locks (5) extend downward (installation position) from the lower side (the side opposite the connector) of the Rain Sensor Module (RSM) housing (6).
2. Reconnect the overhead wire harness (3) connector to the RSM.
3. Position the RSM over the mounting bracket (1) on the windshield glass (2).
4. Push the RSM housing firmly and evenly against the mounting bracket to seat it, then press the two sliding cam locks upward from the lower side of the housing until they are fully engaged and flush (4) with the top of the housing.
5. Reconnect the battery negative cable.
