Washer Fluid Level Switch - Installation

INSTALLATION

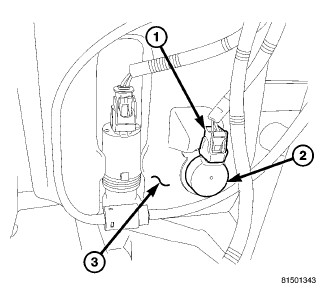

1. Lubricate a new rubber grommet with clean washer fluid and install it into the washer fluid level switch mounting hole located in the outboard side of the washer reservoir (3).
2. Slide the float through and align the barbed nipple of the switch with the rubber grommet seal in the reservoir. The connector receptacle of the switch should be pointed upward.
3. Press firmly and evenly on the switch (2) using hand pressure until the barbed nipple is fully seated in the rubber grommet seal in the reservoir.
4. Reconnect the headlamp and dash wire harness connector (1) for the washer fluid level switch to the switch connector receptacle.
5. Reconnect the front washer hose to the washer pump/motor unit outlet nipple.
6. Reinstall the plastic push-in fasteners that secure the left front wheelhouse splash shield to the inner fender panel and the front fascia. Splash Shield - Installation.
7. Lower the vehicle.
8. Reconnect the battery negative cable.
9. Refill the washer reservoir with the washer fluid drained during removal.
