Receiver

RECEIVER





1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console from the headliner. Overhead Console - Removal.

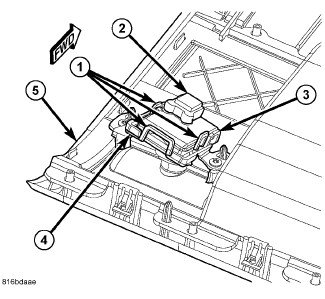

3. Locate the intrusion sensor receiver (3) in the mounting bracket (4) on the left rear corner of the overhead console housing (5).
4. Disconnect the take out of the overhead wire harness from the connector receptacle (2) on the forward end of the receiver housing.
5. Release the three latch features (1) of the mounting bracket and disengage the receiver from the bracket.
