Installation - Rear

INSTALLATION

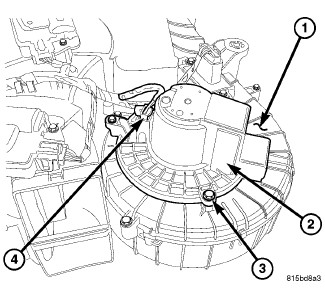

1. Position the rear blower motor (2) into the rear HVAC housing (1).
2. Install the three screws (3) that secure the rear blower motor to the rear HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).
3. Connect the rear HVAC wire harness connector (4) to the rear blower motor.
4. Install the rear HVAC housing .
