Timing Chain Tensioner: Service and Repair

RESETTING TIMING CHAIN TENSIONER






NOTE: Verify that the tensioner is assembled correctly.

1. Install the washer (1), spring (2), and plunger (3) inside the tensioner body (4).

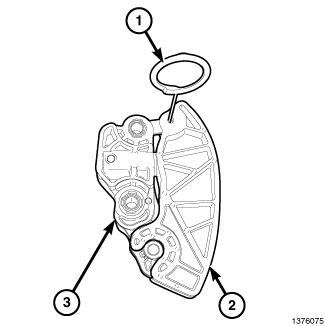

2. Squeeze the tensioner body (3) and movable guide shoe (2) together and install Tensioner Pin 8514 (1).
