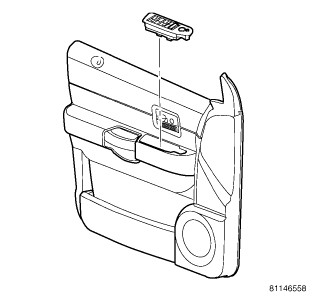

Power Lock Switch - Removal






REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Using a trim stick, start at the rear of the switch and pry up to remove from door trim panel.
3. Disconnect electrical harness connectors from switch.
