P0221-Throttle Position Sensor 2 Performance: Notes

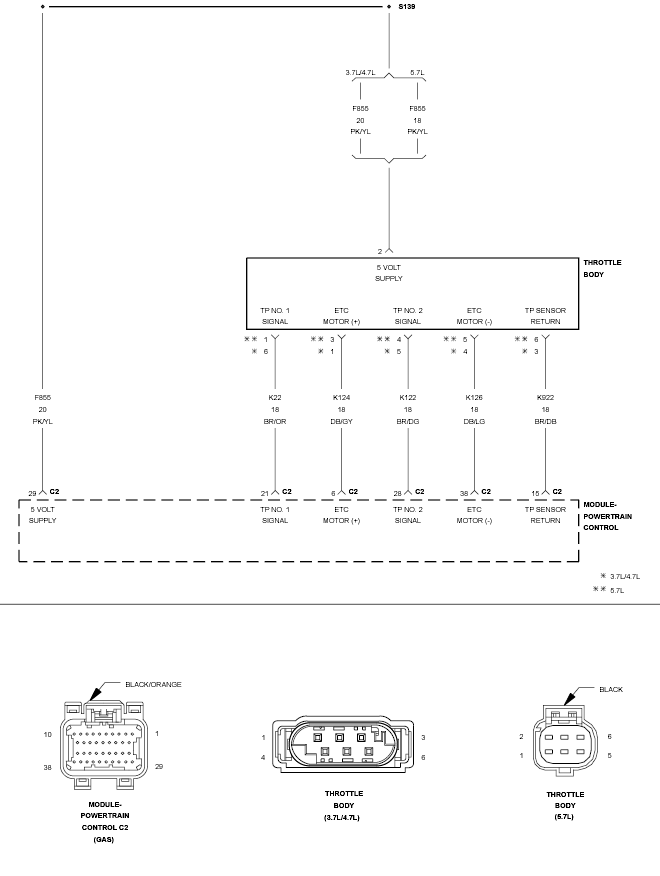

Fig 1: Throttle Position Sensor Circuit
GC0132700Courtesy of CHRYSLER LLC
