Module, Power Liftgate Control: Installation: Installation

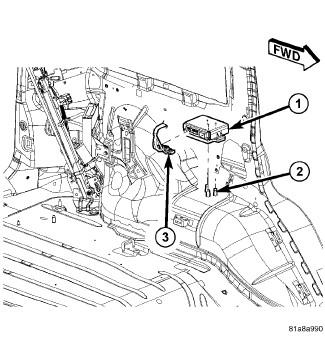

Fig 1: Identifying Power Liftgate Control Module

Courtesy of CHRYSLER LLC

1. Position the power liftgate control module (1) into the vehicle.
2. Install the power liftgate control module (1) onto the retaining tabs of the left rear wheel well (2).
3. Connect the wire harness connectors (3) to the power liftgate control module (1).
4. Install the left quarter trim panel. Refer to Body/Interior/PANEL, Quarter Trim - Installation .
5. Connect the battery negative cable.
6. Using an appropriate scan tool, check and erase any power liftgate control module diagnostic trouble codes.
7. Perform the power liftgate learn cycle. Refer to Electrical - Power Systems/Power Liftgate - Standard Procedure .
8. Verify power liftgate system operation.
