REPAIR PROCEDURE - Using StarMOBILE® Stand-alone Diagnostic Mode

NOTE: StarMOBILE® Stand-alone Mode is an efficient way to flash ECUs without having direct access to a network connection. It involves first copying the flash file to the StarMOBILE® device which DOES require a network connection. Once the file has been copied to the StarMOBILE® device, it can be used in a Stand-alone mode to flash the ECU WITHOUT a network connection.

NOTE: StarMOBILE® does not need to be connected to a vehicle when retrieving a flash file for Stand-alone Mode.

Power on the StarMOBILE®. Launch the StarMOBILE® Desktop Client and connect to the tool.
At the Home screen, select "ECU View"
1. Select "PCM"
2. Select "More Options"
3. Select "ECU Flash"
4. Select "Browse for New File" and follow the on screen instructions.
5. Highlight the appropriate calibration based on the current ECU part number, or by using Year/Model/Engine and appropriate emissions selection for the vehicle being worked on.
NOTE: If you are not connected to the vehicle, you may also search for flash files by selecting the "Flash Download" button from the Home screen.

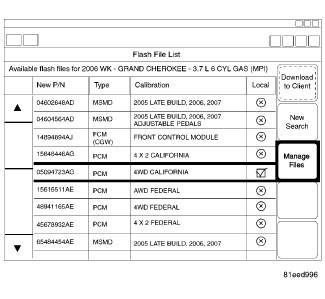

From the Flash File List, select the appropriate calibration for the PCM and select "Download to Client"
Once the download is complete, hit "OK" and then "Manage Files"

Fig 1: FIG 1
Courtesy of CHRYSLER LLC

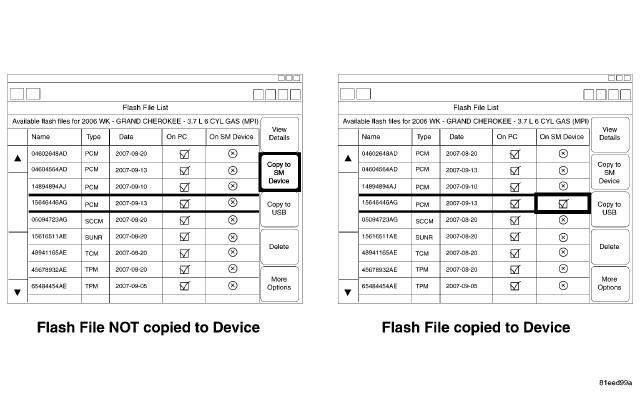

In the Manage Files screen, highlight the downloaded flash file and select "Copy to SM Device". A green check mark should now appear in the On SM Device column.

Fig 2: FIG 2
Courtesy of CHRYSLER LLC
Exit the StarMOBILE® Desktop Client application.
Open the hood of the vehicle and install a battery charger. Verify that the charging rate provides a continuous charge of 13.2 - 13.5 volts.
Connect the StarMOBILE® to the vehicle data link connector located under the steering column and turn the ignition key to the "RUN" position.

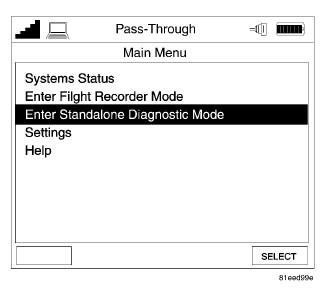

On the StarMOBILE® device, select "Enter Stand-alone Diagnostic Mode" (use the right function key).

Fig 3: FIG 3
Courtesy of CHRYSLER LLC

NOTE: If a StarMOBILE® Desktop Client is still associated with the device, you will receive the following error: "Your StarMOBILE® device is currently locked by a PC named 'xxxxxxxx' on your network. To remove the lock, close its Desktop Client or reboot this device".
Program the ECU as follows:
1. Select "ECU View"
2. Select "PCM"
3. Select "Flash ECU"

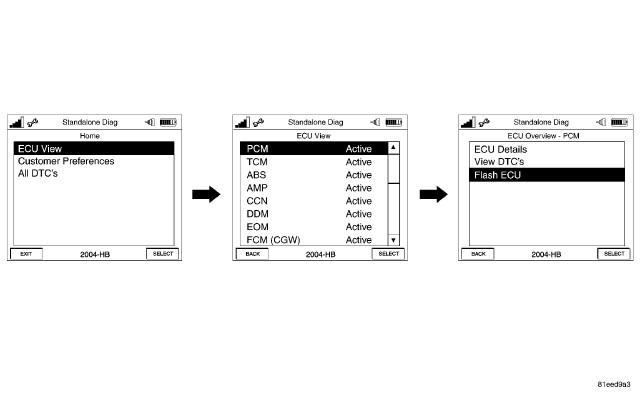

  Fig 4: FIG 4
  Courtesy of CHRYSLER LLC

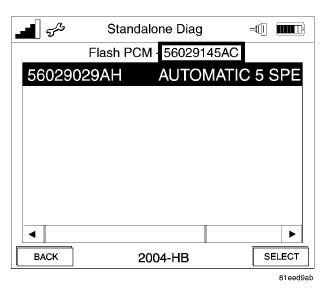

4. Record the ECU part number at the very top of the screen for later reference.

  Fig 5: FIG 5
  Courtesy of CHRYSLER LLC
5. Highlight the flash file that you want to use. Hit "SELECT" and then "OK". Follow the on screen instructions.

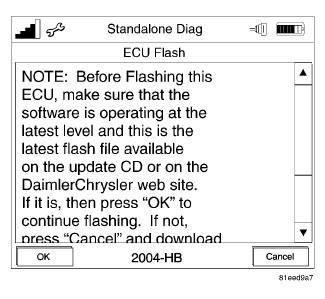

  Fig 6: FIG 6
  Courtesy of CHRYSLER LLC
6. Once the flash is complete, verify that the part number at the top of the Flash PCM screen has updated to the new part number.
NOTE: If this flash process is interrupted or aborted, the flash should be restarted.
Continue to SECTION 2 - ADDITIONAL PCM / TCM REPLACEMENT PROCEDURES to complete the process if the ECU has been replaced.
Type the necessary information on the "Authorized Modification Label" (p/n 04275086AB) and attach near the VECI label (See SECTION 3 - AUTHORIZED MODIFICATION LABEL for details).
