3.7L Gas/3.0L Diesel Vehicles

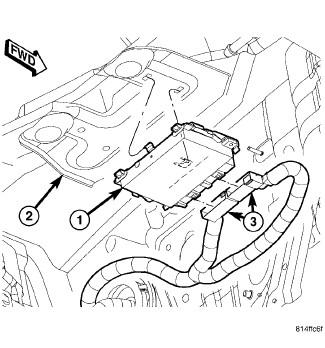

Fig 1: Transmission Control Module Location - 3.7L Vehicles
GC0118383Courtesy of CHRYSLER LLC
1 - TRANSMISSION CONTROL MODULE
2 - DASH PANEL
3 - WIRING CONNECTORS
  1. Connect the wiring connectors (3) to the transmission control module (1). See Fig 1.
  2. Install the module to the dash panel (2) or the mounting bracket.
  3. Fold the dash panel silencer pad back over the module and retain the pad in place with suitable adhesive tape.
