Circuit Schematic

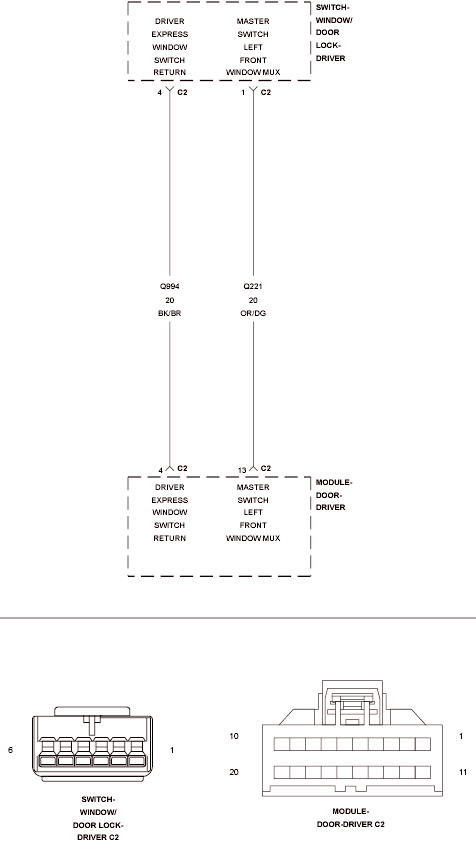

Fig 1: Driver Express Window Switch Return & Master Switch Left Front Window MUX Circuit Schematic
GC0119850Courtesy of CHRYSLER LLC
