P0691-Cooling Fan 1 Relay Control Circuit Low: Notes

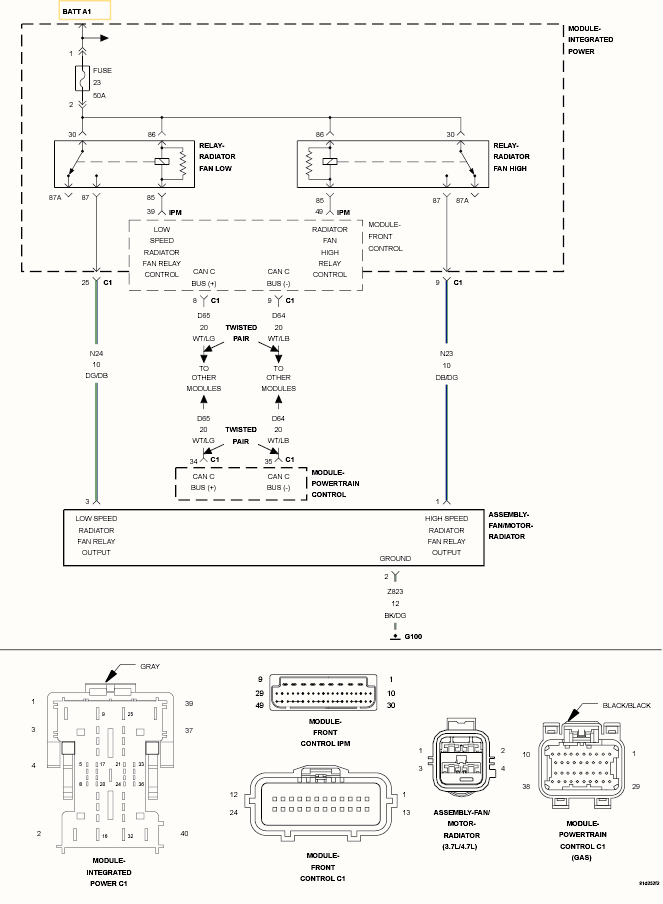

Fig 1: Cooling Fan 1 Relay Control Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
