Module, Engine Control: Installation: Installation

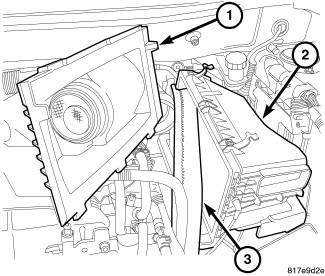

Fig 1: Air Filter

Courtesy of CHRYSLER LLC

1. Install ECM on mounting bracket. Torque nuts to 10.7N.m (95 lbs. in.).
2. Install ECM (2) and mounting bracket assembly in vehicle.
3. Connect both ECM (2) electrical connectors.

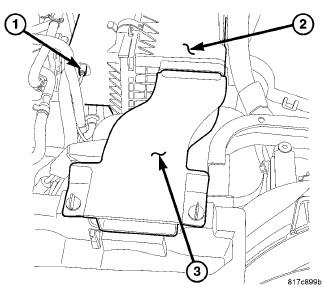

   Fig 2: Air Inlet Duct

   Courtesy of CHRYSLER LLC
4. Install air cleaner housing assembly (2). Refer to Engine/Air Intake System/BODY, Air Cleaner - Installation .
5. Connect vacuum hose (1).
6. Connect negative battery cable.
7. Install air inlet tube (3).
8. Reprogram ECM. See Electrical/Electronic Control Modules/MODULE, Engine Control - Standard Procedure .
