Jeep
>>
2009
>>
Compass Limited, ED3, AWD, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0703 To P2016 (Gas)
>>
P1593-Speed Control Switch 1/2 Stuck
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P1593-Speed Control Switch 1/2 Stuck: Notes

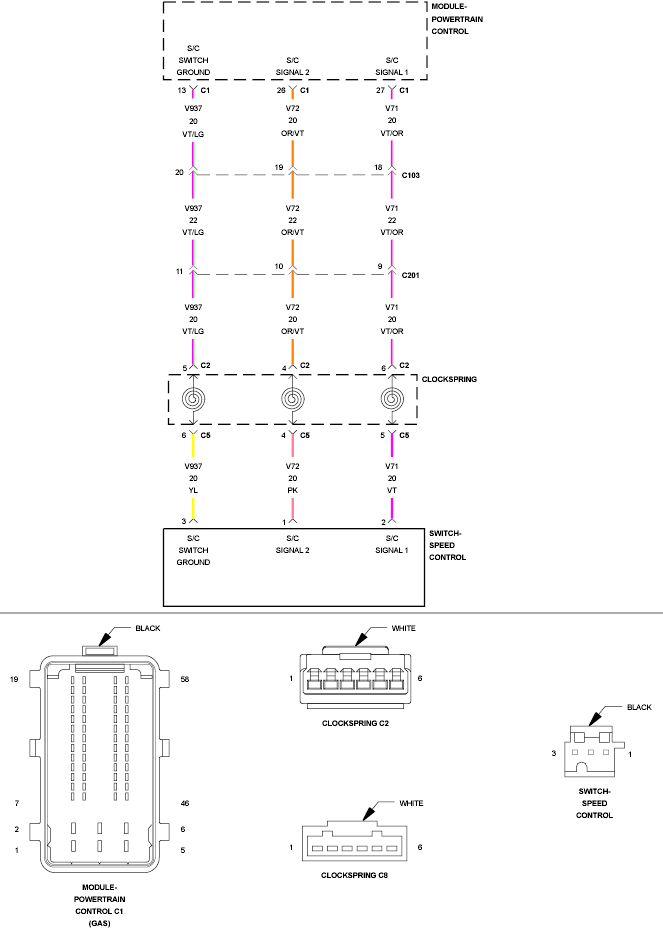

Fig 1: Speed Control Switch Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
