P0325-Knock Sensor 1 Circuit: Notes

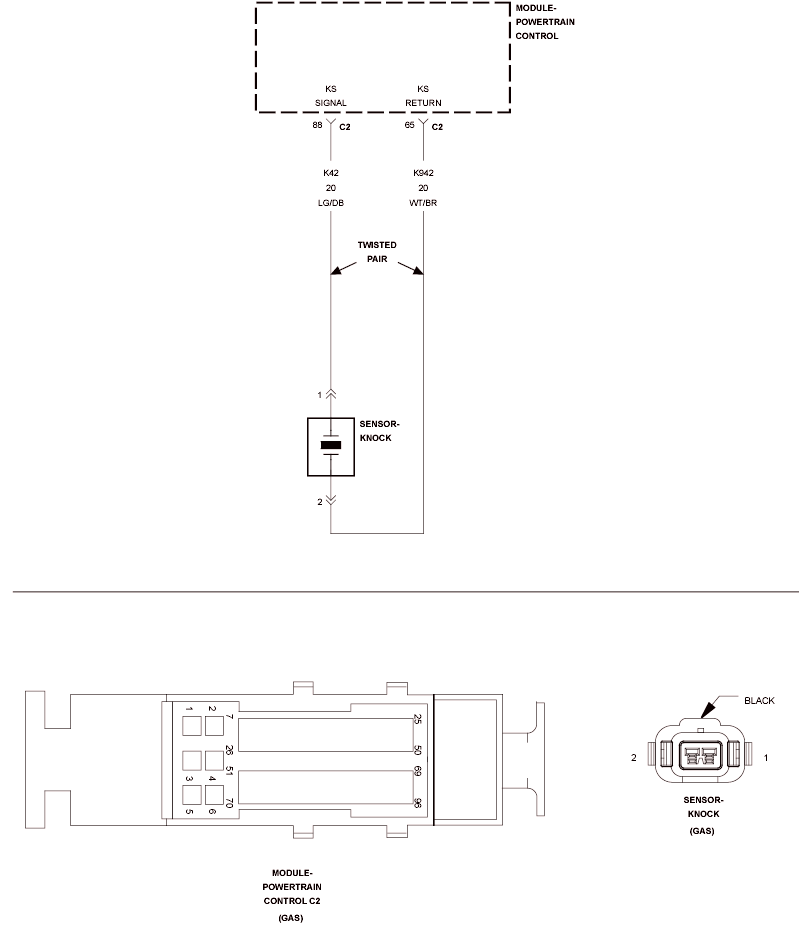

Fig 1: Knock Sensor Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
