P0617-Starter Control Circuit High: Notes

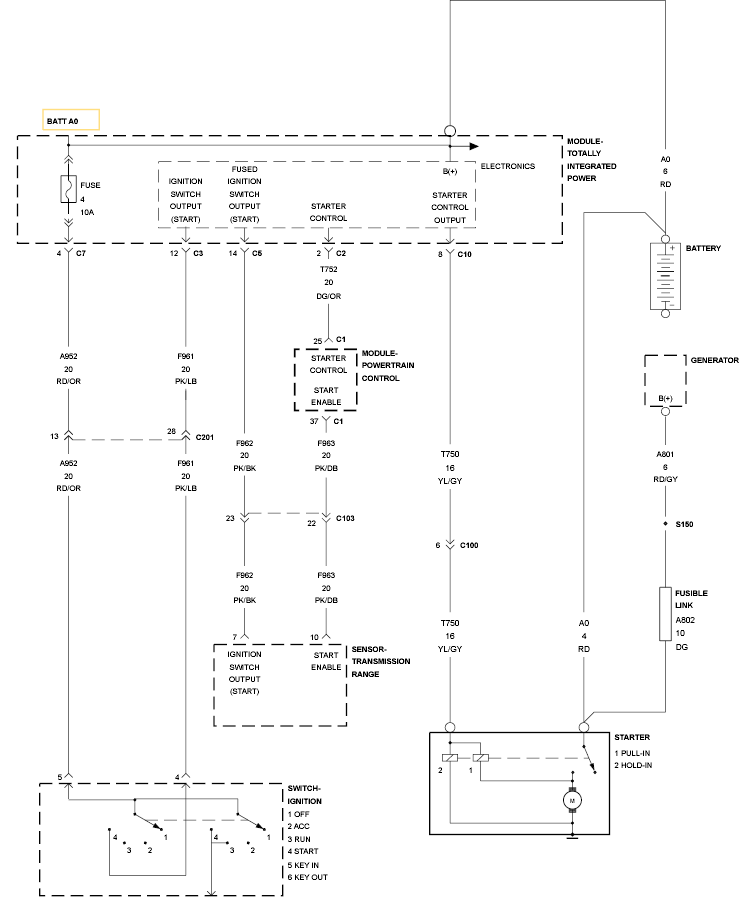

Fig 1: Starter Control Circuit 2
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
