P2431-Secondary Air Injection System Air Flow Sensor Circuit Performance: Notes

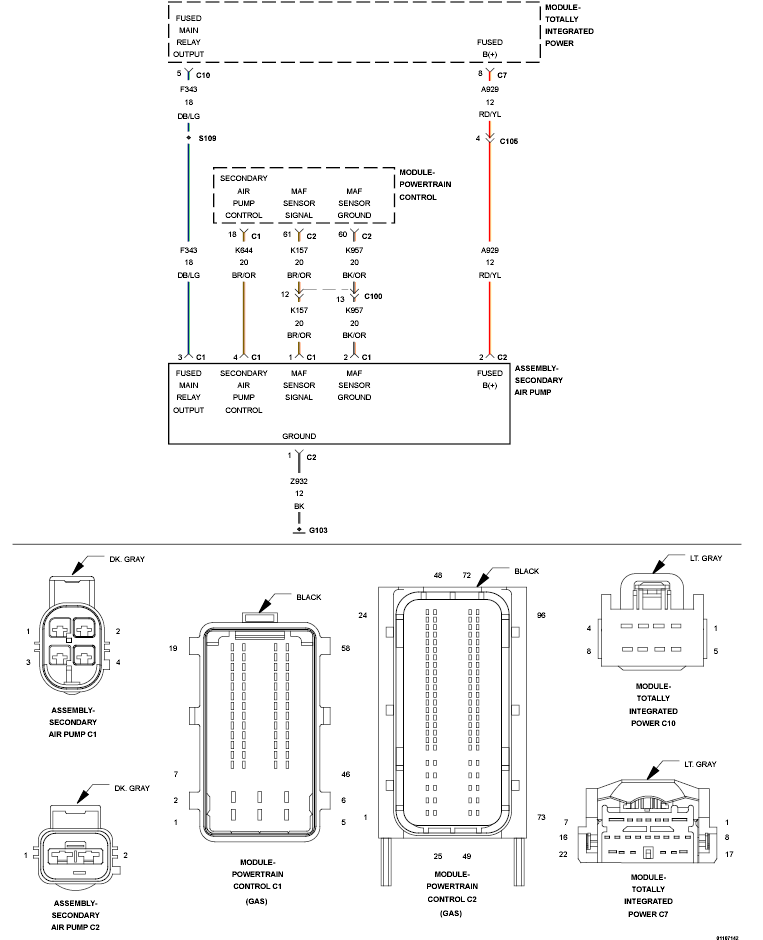

Fig 1: Secondary Air Injection System Control Circuit
GC0099891Courtesy of CHRYSLER LLC
