Engine Specifications






SPECIFICATIONS

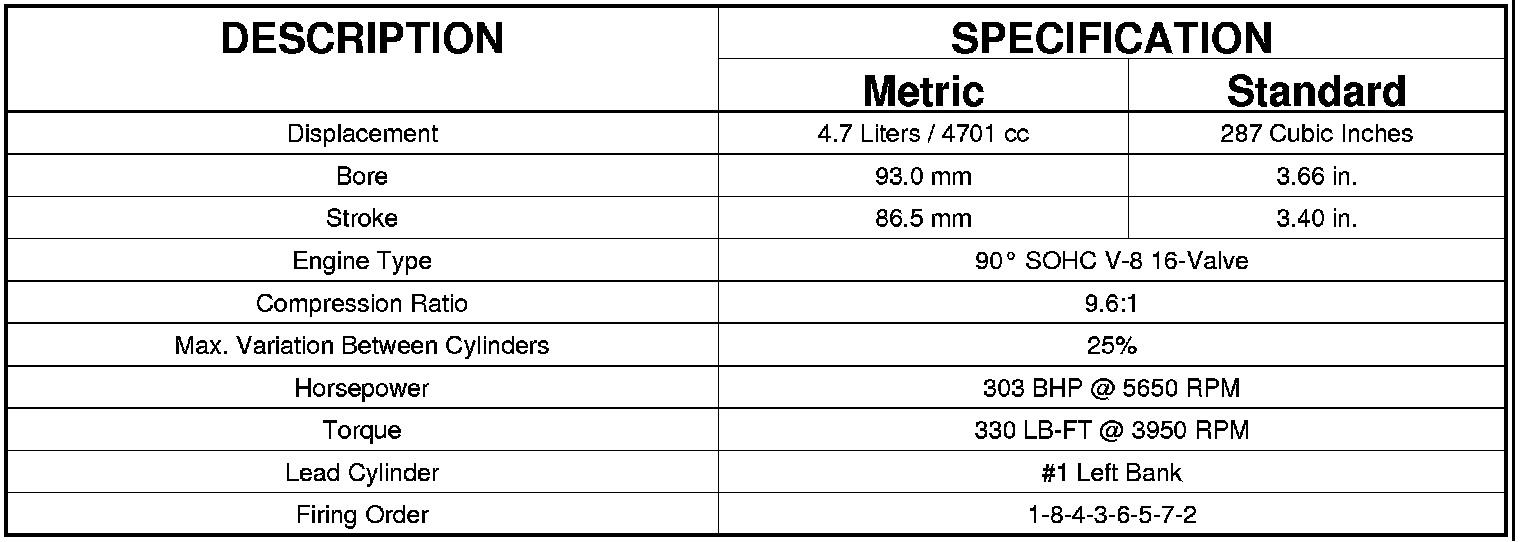

ENGINE - GENERAL

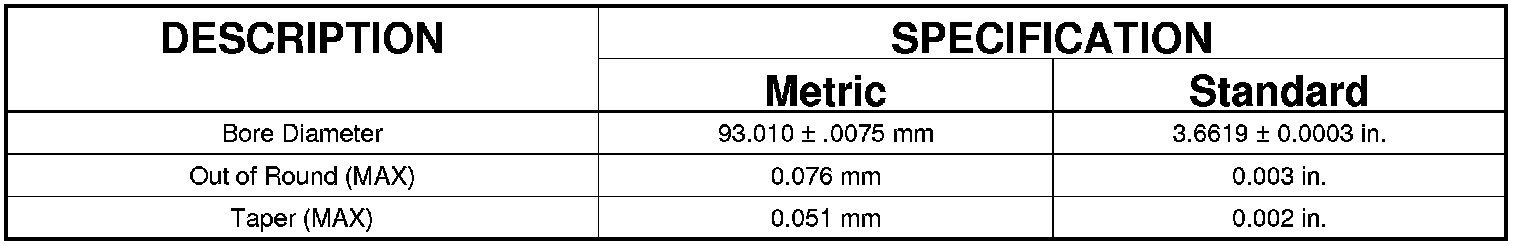

CYLINDER BLOCK

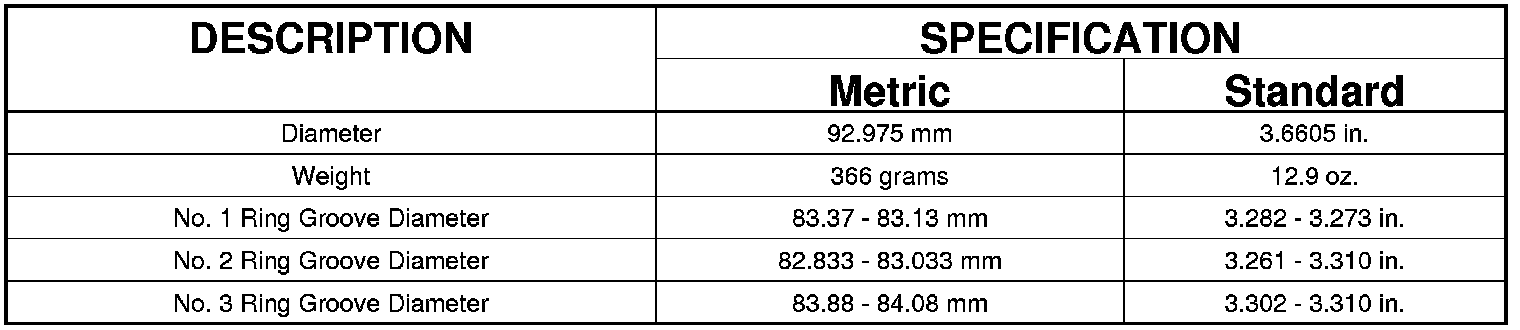

PISTONS

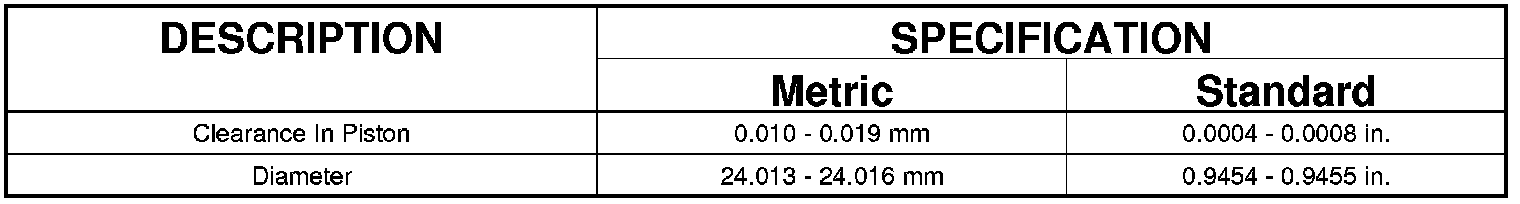

PISTON PINS

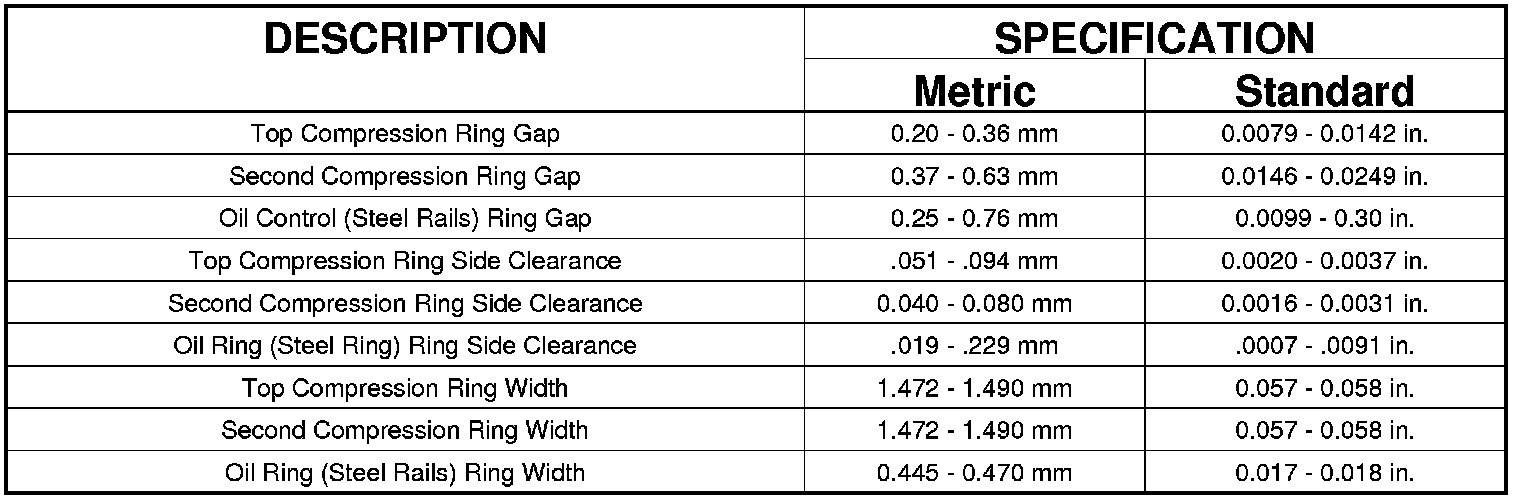

PISTON RINGS

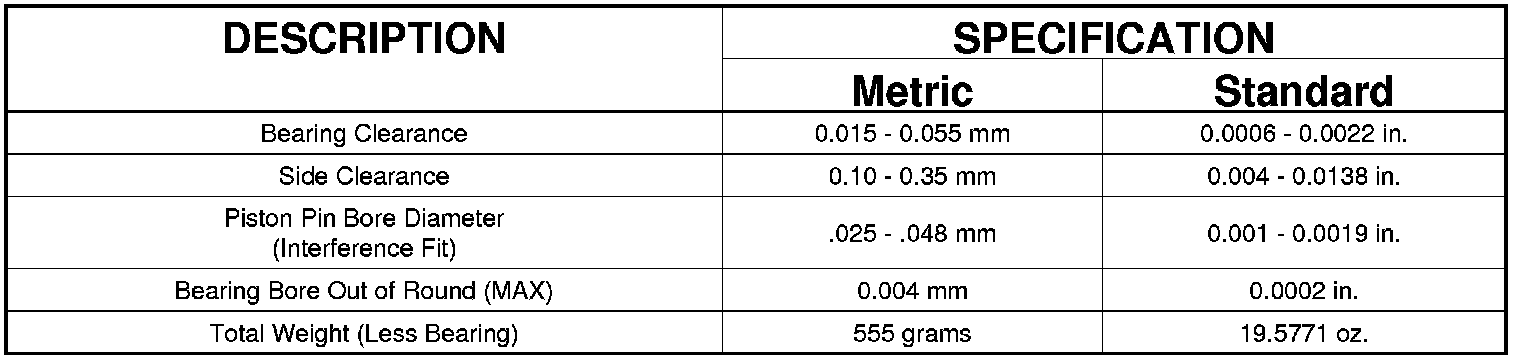

CONNECTING RODS

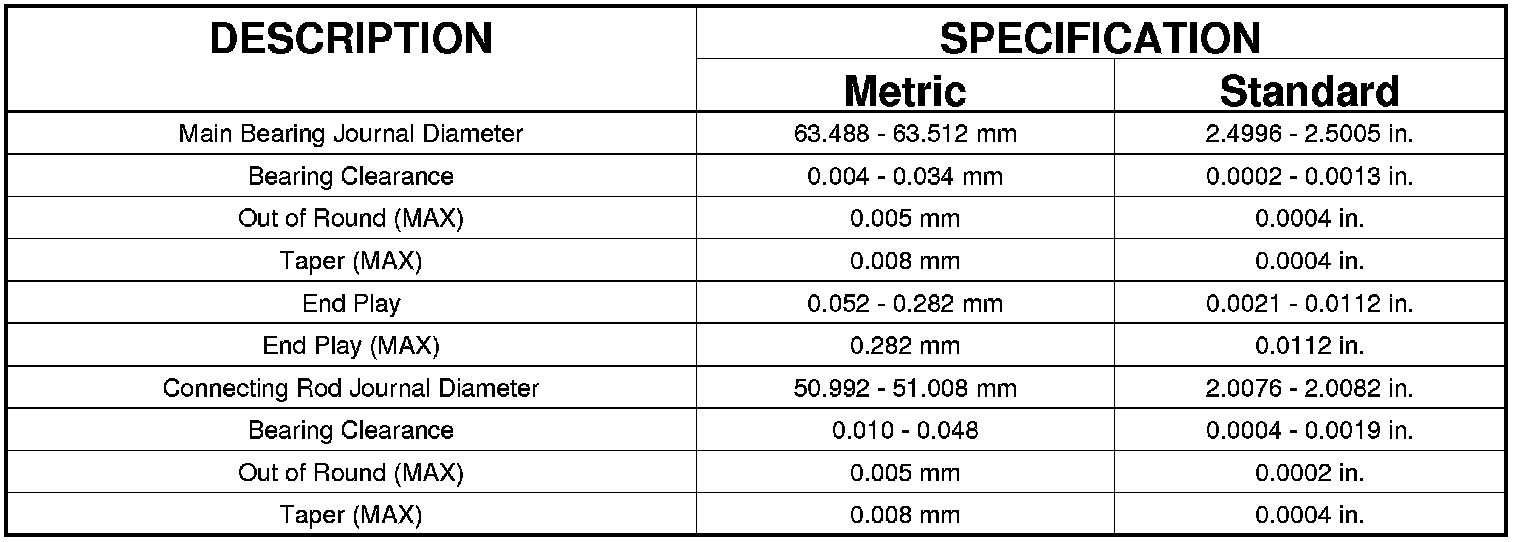

CRANKSHAFT

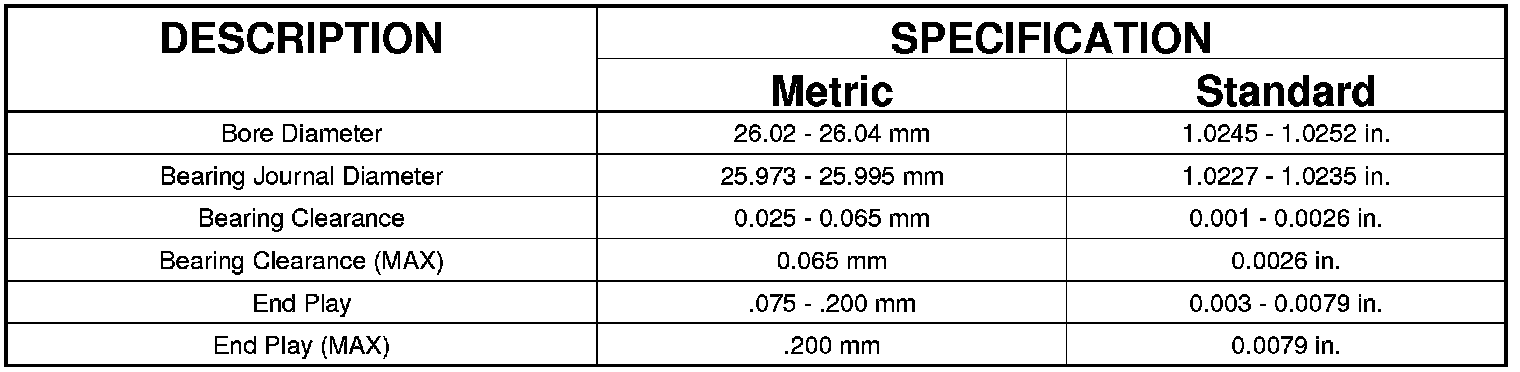

CAMSHAFT

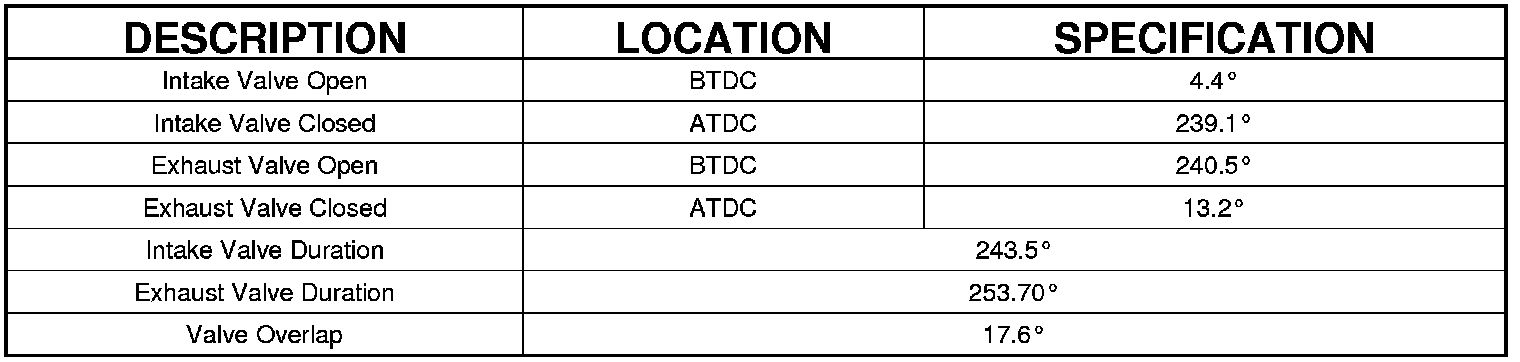

VALVE TIMING

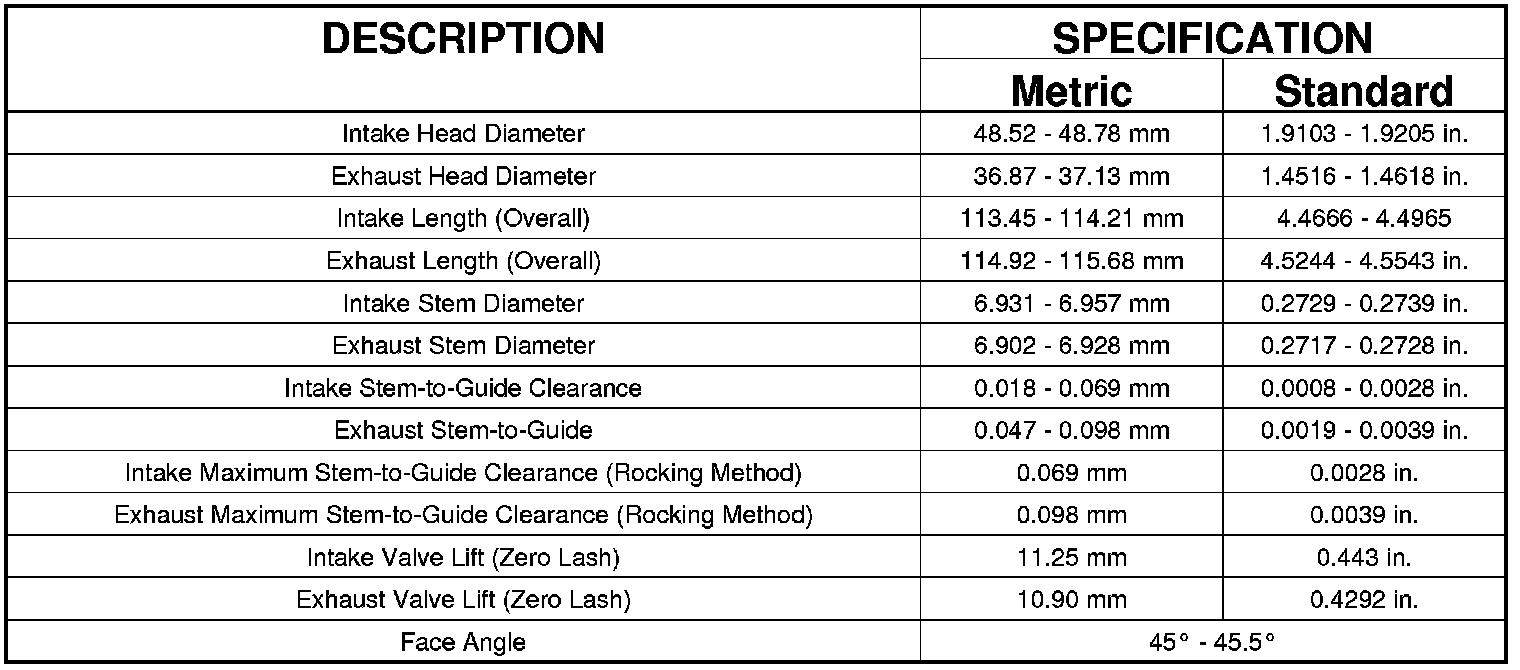

VALVES

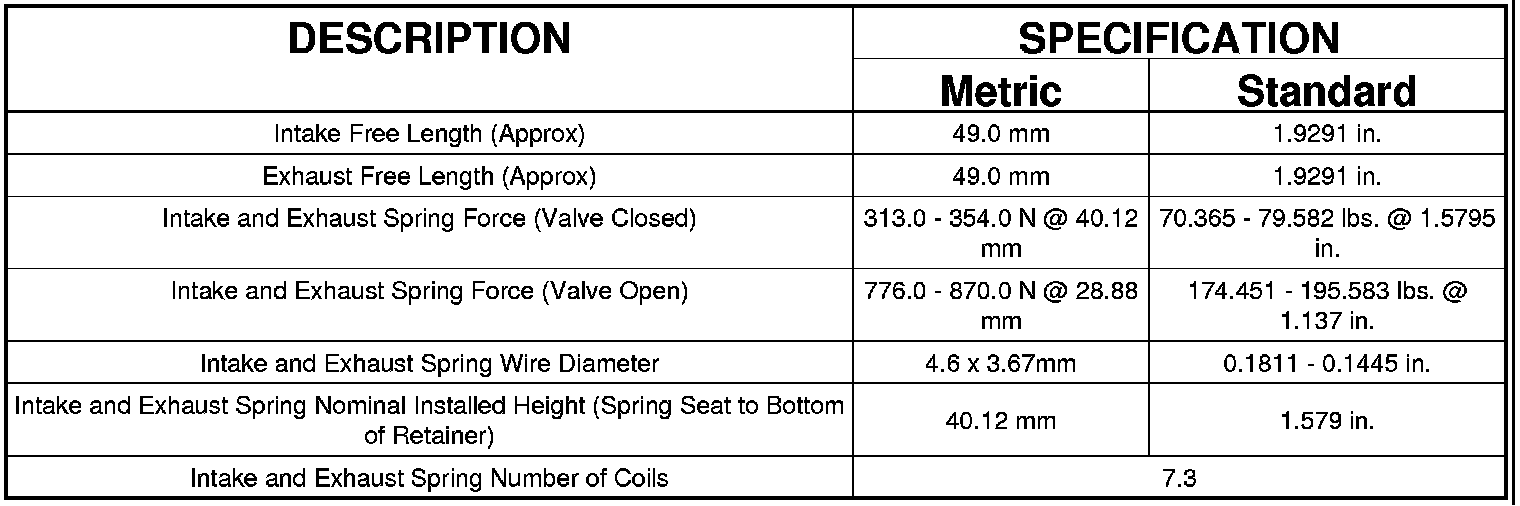

VALVE SPRING

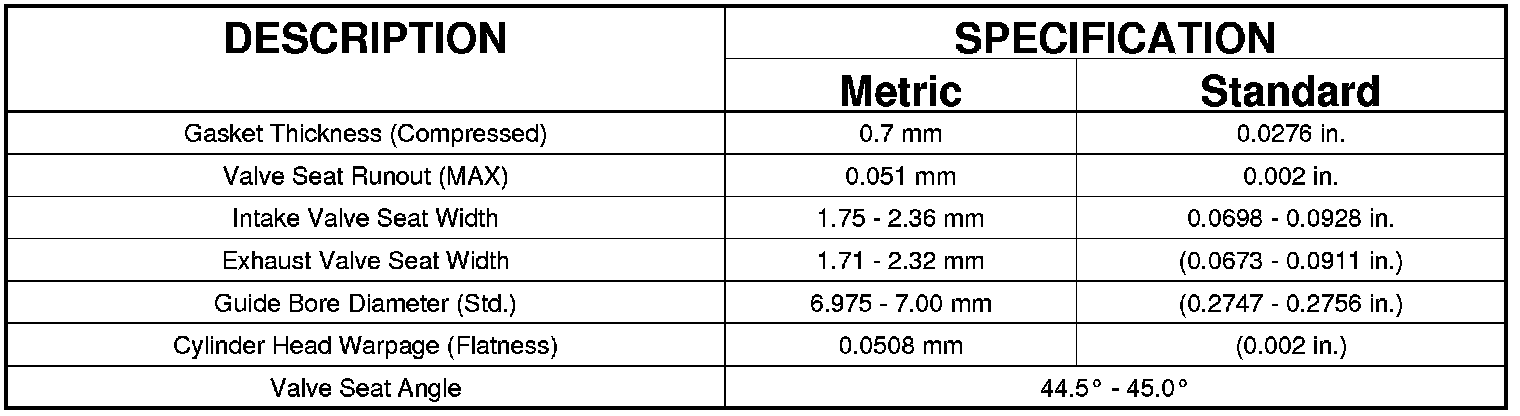

CYLINDER HEAD

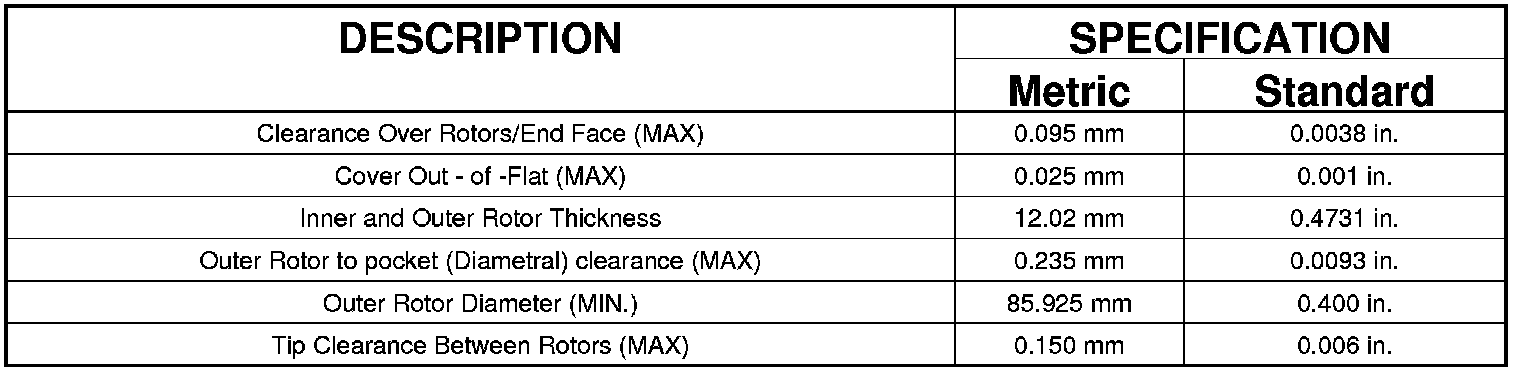

OIL PUMP

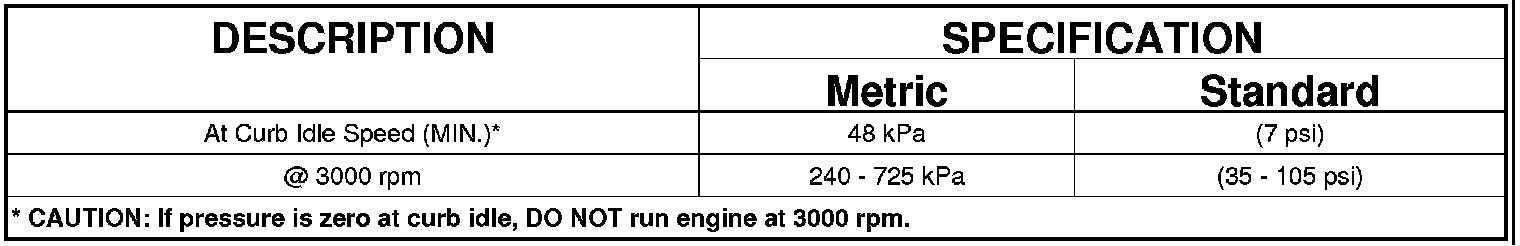

OIL PRESSURE
