Passenger Door Module C2 (Express Up/Memory) (Component Side) 10 Way

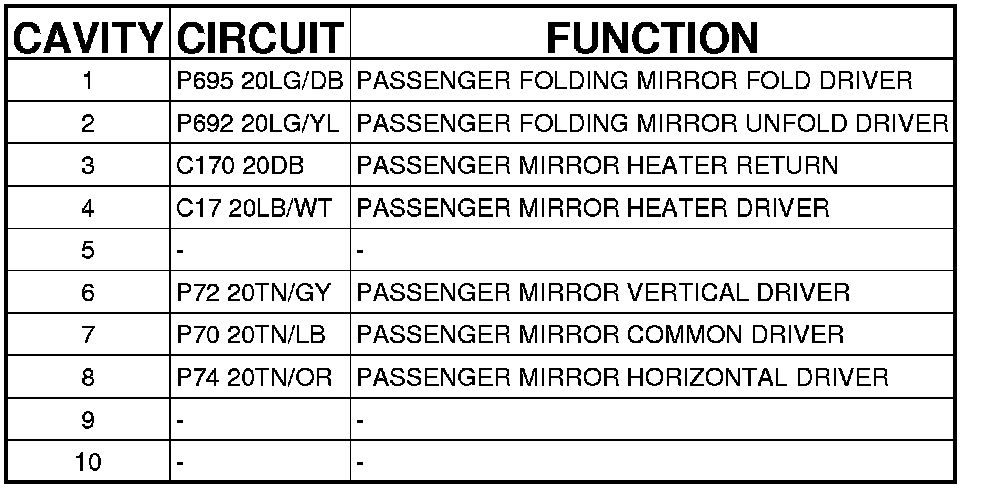

Connector C2 (EXPRESS UP/MEMORY) - (COMPONENT SIDE) 10 WAY

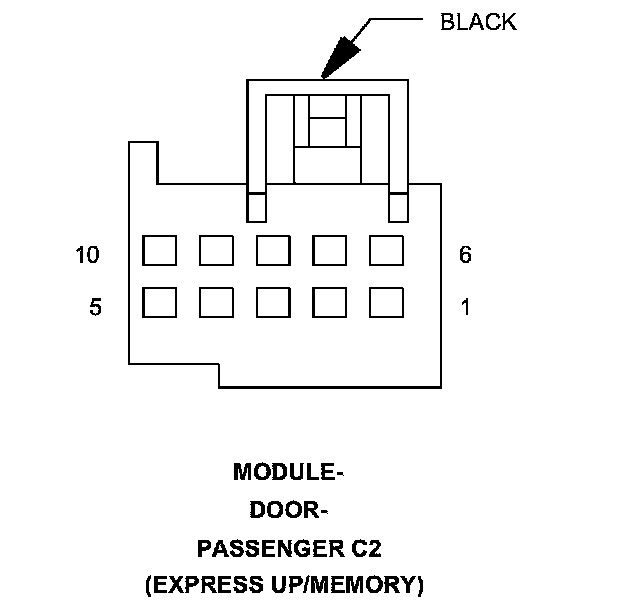

MODULE-DOOR-PASSENGER (EXPRESS UP/MEMORY) - (COMPONENT SIDE) 10 WAY
