Power Window Switch - Removal






REMOVAL





1. Disconnect and isolate the battery negative cable.

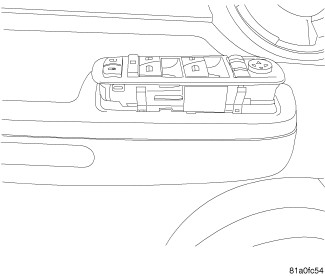

2. Gently pry the switch from the door trim panel.
3. Disconnect electrical harness connector from switch.
