Control Module, Transfer Case

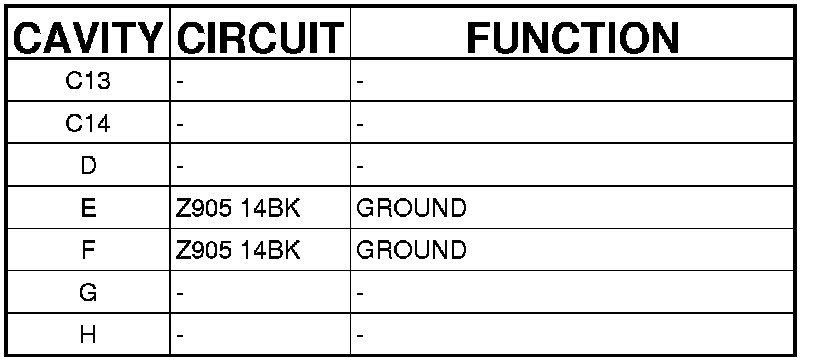

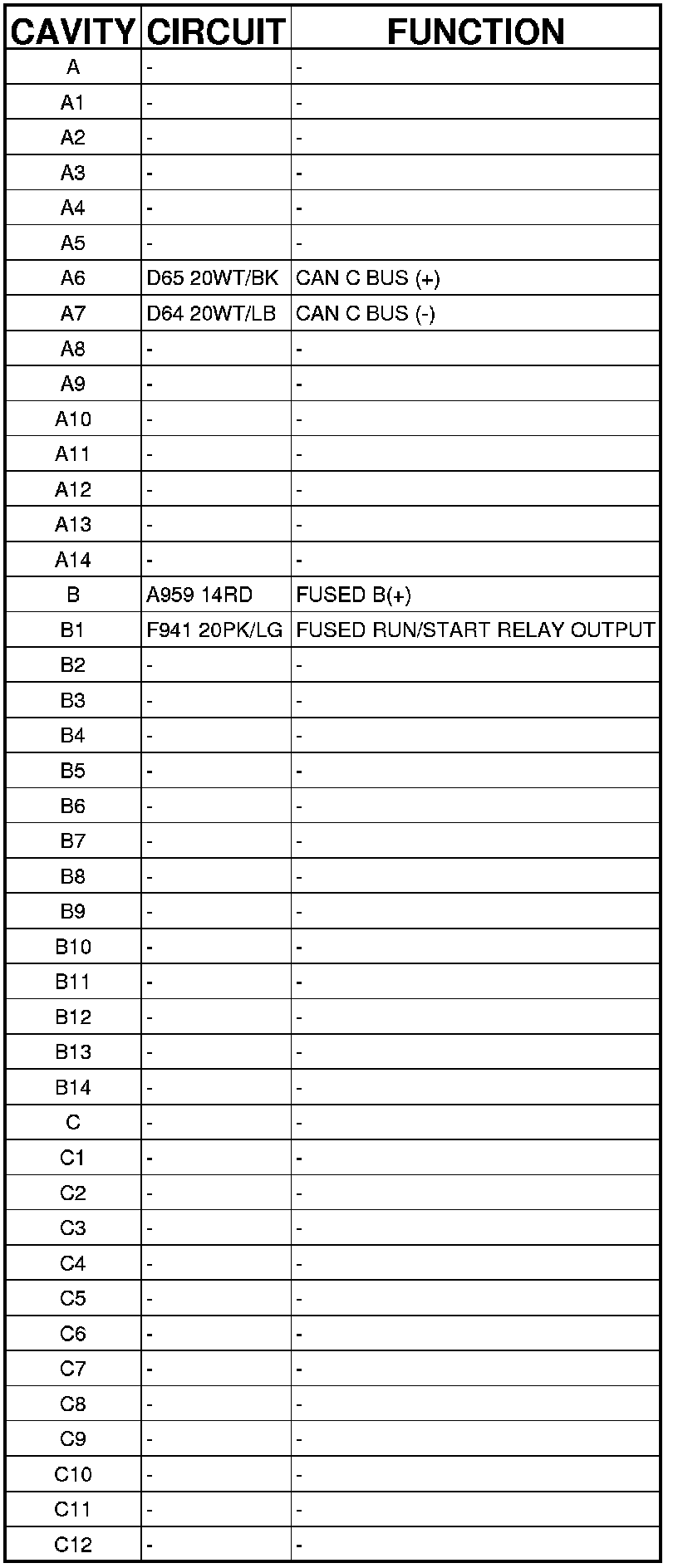

Connector (ASBS) - (CHASSIS) 50 WAY

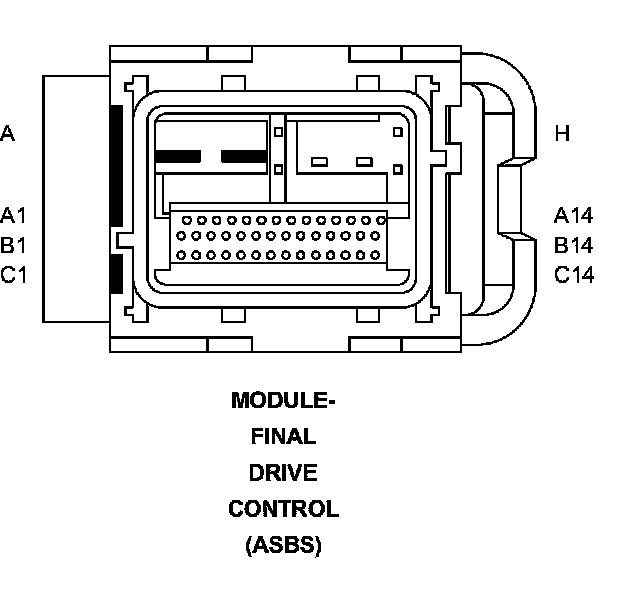

MODULE-FINAL DRIVE CONTROL (ASBS) - (CHASSIS) 50 WAY
