Ignition Switch Connector End View

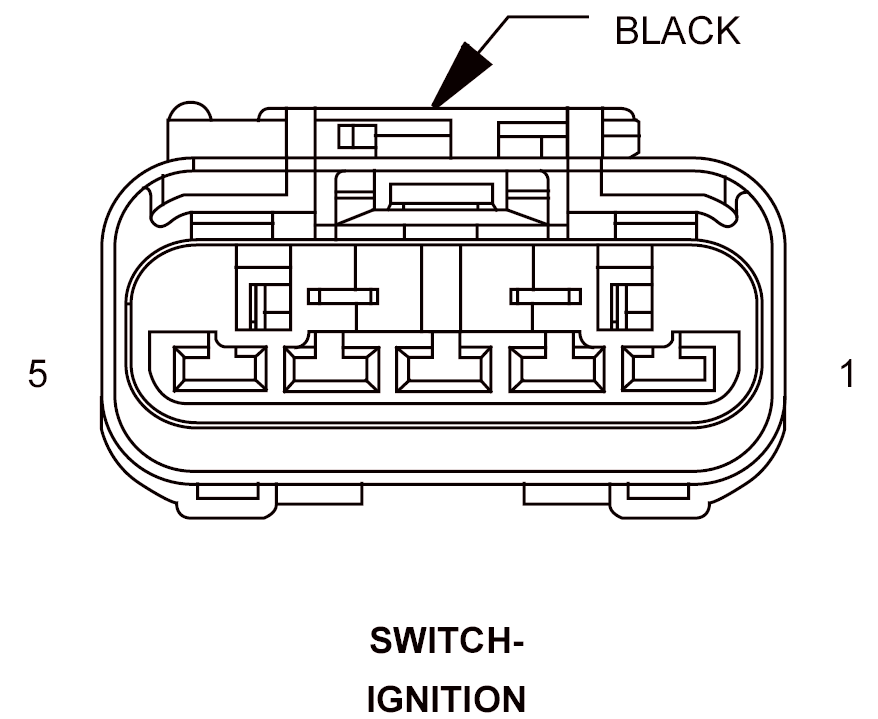

SWITCH-IGNITION - BLACK 5 WAY

GJK880291Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z914 20BK GROUND
2 G20 22VT/BR IGNITION SWITCH SENSE
3 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 - -
5 A106 18LB/RD FUSED B(+)
