P0706-Transmission Range Sensor Rationality: Notes

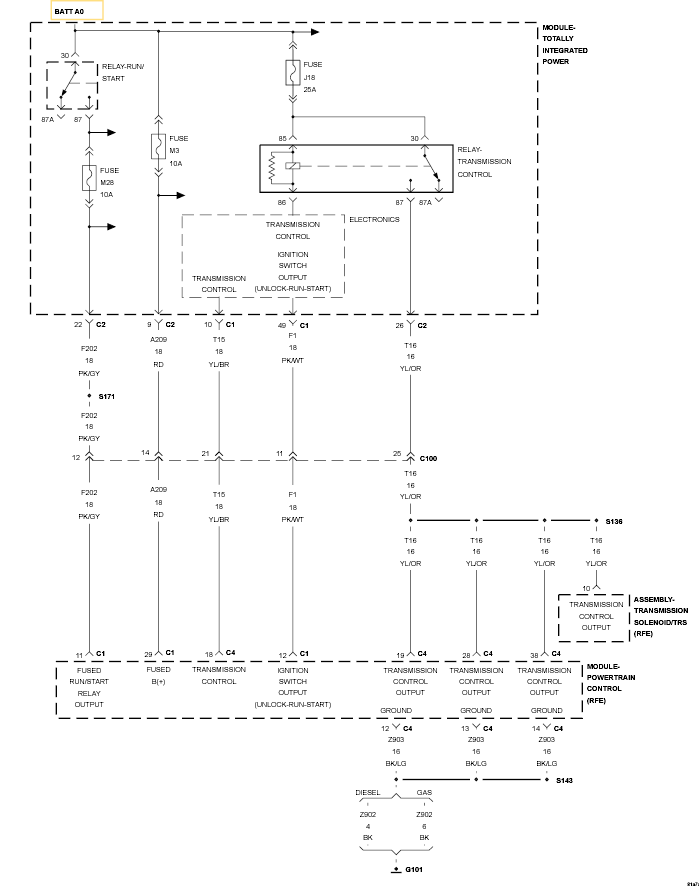

Fig 1: Transmission Range Sensor Circuit

GC0132021

Courtesy of CHRYSLER LLC
