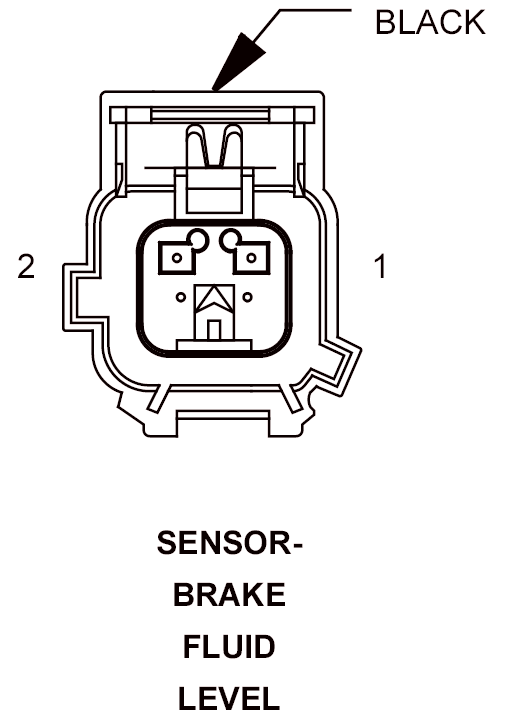

Brake Fluid Level Sensor Connector End View
SENSOR-BRAKE FLUID LEVEL - BLACK 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B20 20DG/OR
BRAKE FLUID LEVEL SIGNAL
2
K91 20DB/YL
SENSOR GROUND
Courtesy of CHRYSLER CORP.
