Fuel Pump Module Connector End View

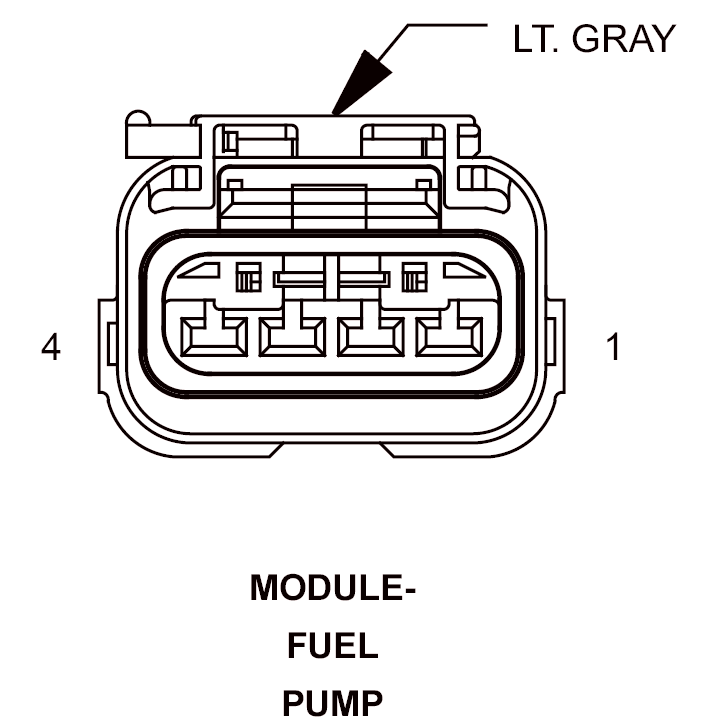

MODULE-FUEL PUMP - LT. GRAY 4 WAY

GJK880165Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z905 16BK GROUND
2 N4 20DB FUEL LEVEL SIGNAL
3 K91 18DB/YL SENSOR GROUND
4 N1 16DB/OR FUSED FUEL PUMP OUTPUT
