P0645-A/C Clutch Control Circuit: Notes

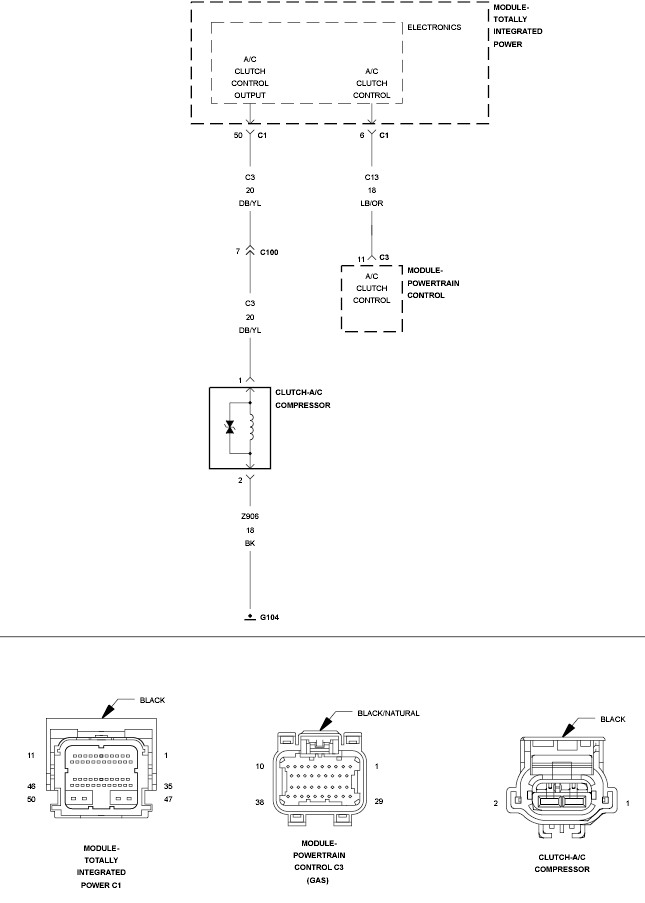

Fig 1: A/C Clutch Control Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
