P2111-Electronic Throttle Control - Unable To Close: Notes

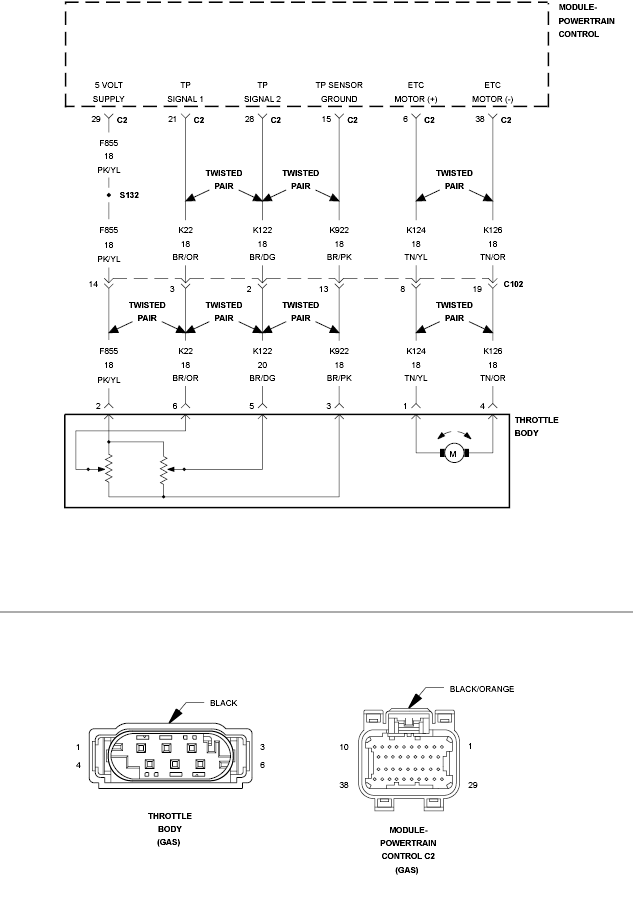

Fig 1: Throttle Position Sensor Circuit
GC0131884Courtesy of CHRYSLER LLC
