Installation

INSTALLATION - 5.7L

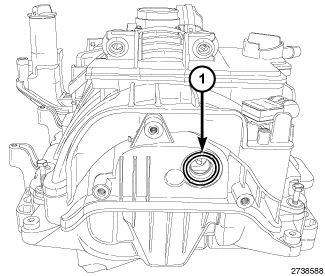

1. Install a new short runner valve actuator rubber O-ring seal (1).

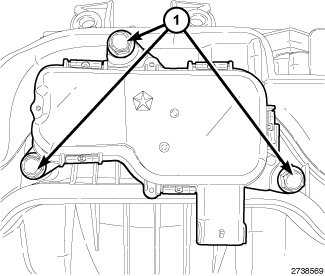

2. Position the short runner valve actuator, install the retaining bolts (1) and tighten to 5 Nm (44 in. lb.).





3. Install the intake manifold and throttle body as an assembly Intake Manifold - Installation.

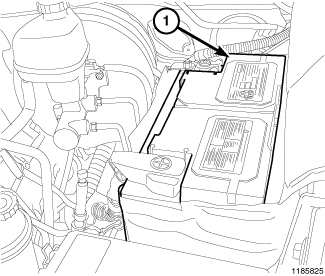

4. Connect the negative battery cable (1).
