Variable Valve Timing Assembly - Installation

INSTALLATION

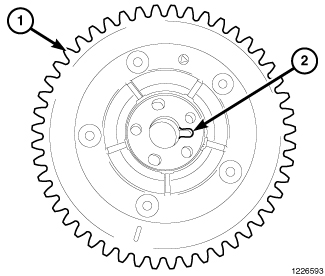

1. Align the slot (2) in the phaser (1) with the dowel on the camshaft.






CAUTION: Never attempt to disassemble the camshaft phaser, severe engine damage could result.

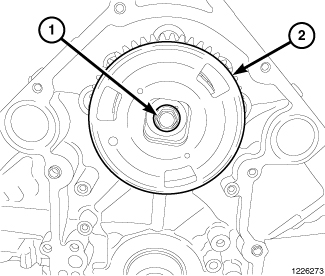

2. Position the phaser (2) in place and install phaser retaining bolt (1) and tighten to 122 Nm (90 ft. lbs.).
3. Install the timing chain and sprockets Timing Chain & Sprockets - Installation
