DECOUPLER, Generator: Removal: Removal: Notes

The generator decoupler is used only with certain engines.

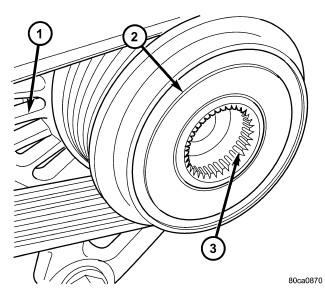

Fig 1: GENERATOR DECOUPLER PULLEY (INA)

Courtesy of CHRYSLER LLC

1 - GENERATOR

2 - DECOUPLER (INA)

3 - MACHINED SPLINES

Two different type generator decoupler pulleys are used. One can be identified by the use of machined splines (3) .

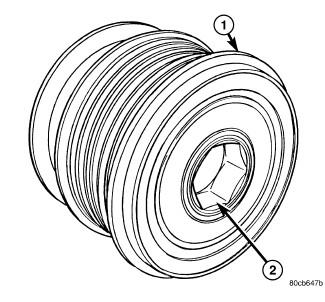

Fig 2: GENERATOR DECOUPLER PULLEY (LITENS)

Courtesy of CHRYSLER LLC

1 - DECOUPLER (LITENS)

2 - HEX OPENING

The other decoupler is equipped with a hex opening (2) and will not use splines.

Different special tools are required to service each different decoupler. Refer to following procedure.
