Installation






INSTALLATION

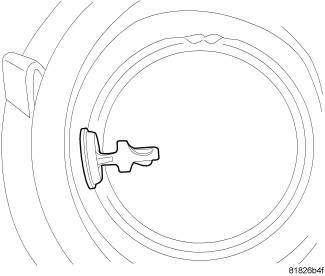

1. Install inlet air temperature sensor into the clean air duct.

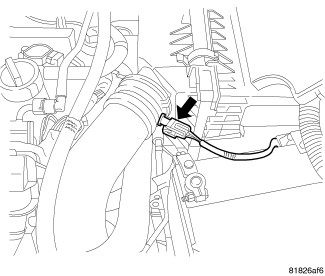

2. Connect electrical connector to sensor.
3. Connect the negative battery cable.
