Transmission Range Sensor - Removal

REMOVAL

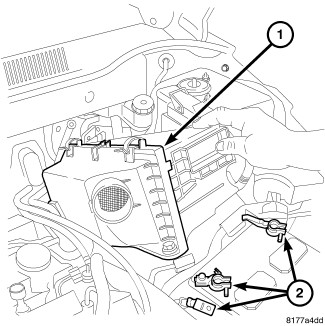

1. Disconnect battery cables (2).
2. Remove air cleaner assembly (1).





3. Remove battery.

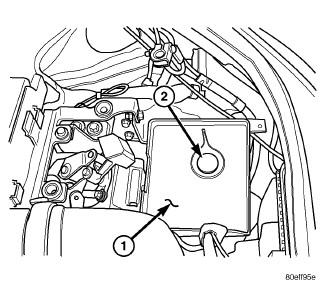

4. Remove battery tray (1).

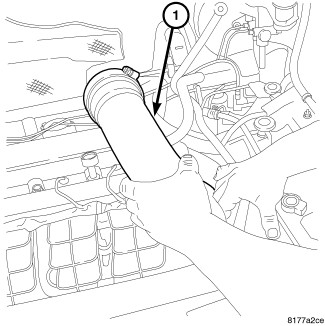

5. Remove inlet air tube (1).

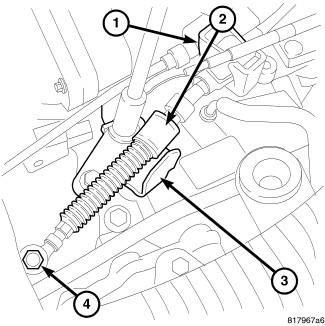

6. Remove the shifter cable (2).





7. Remove nut (1) at shift lever.
8. Remove shift lever (2).





9. Remove bolts (2) at TRS.
10. Remove TRS (1).
