Manual Temperature Control (MTC) System

MANUAL TEMPERATURE CONTROL (MTC) SYSTEM





A linear-type blower motor power module is used on this model when equipped with the Manual Temperature Control (MTC) heating-A/C system.

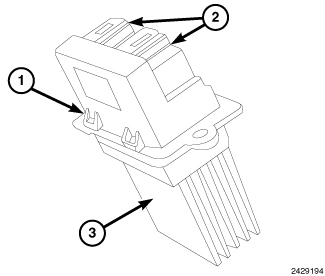

The blower motor power module is mounted to the rear of the HVAC housing, directly behind the glove box. The blower motor power module consists of a molded plastic housing with an integral mounting plate (1) and two connector receptacles (2). Concealed within the housing is the power module electronic circuitry. Behind the mounting plate is a finned aluminum heat sink (3).

The blower motor power module is accessed for service through the glove box opening.
