Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

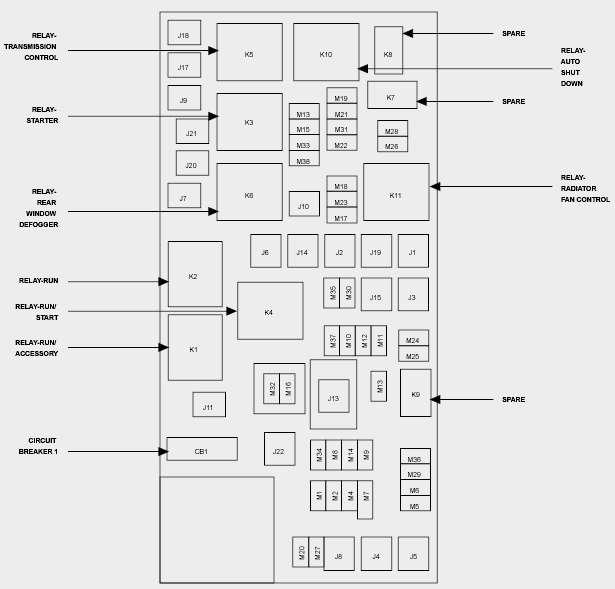

| Circuit Breaker 1 |
Totally integrated power module. See Figure. |

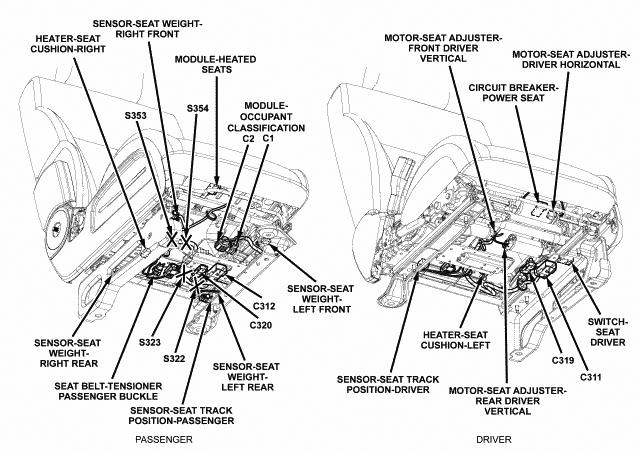

| Power Seat Circuit Breaker |
Under driver's seat. See Figure. |

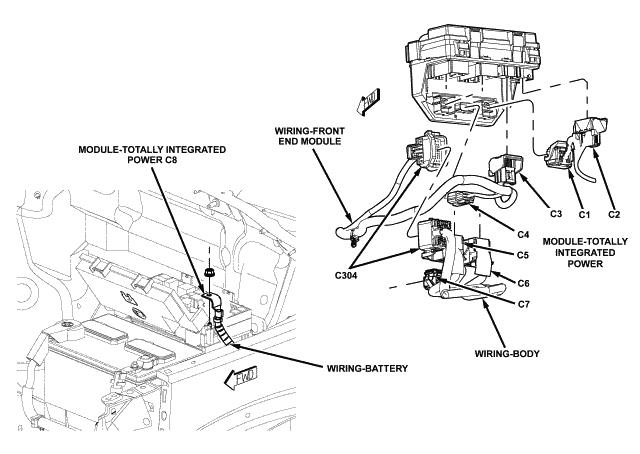

| Totally Integrated Power Module |
Left front of engine compartment. See Figure. |
