Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

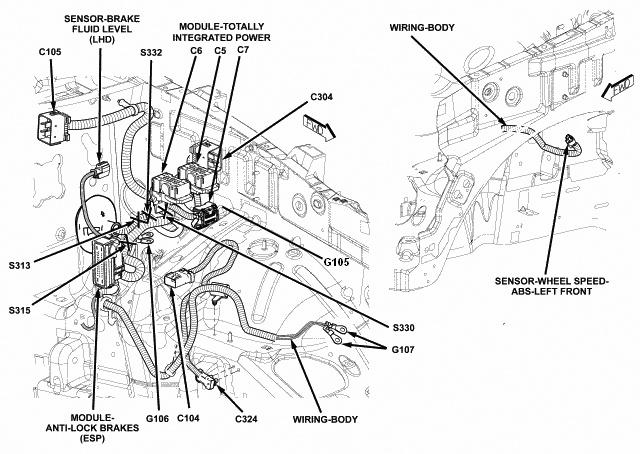

| Anti-Lock Brakes (EPS) Module | Left rear of engine compartment. See Figure. |
| Fuel Pump Module | Fuel tank. |

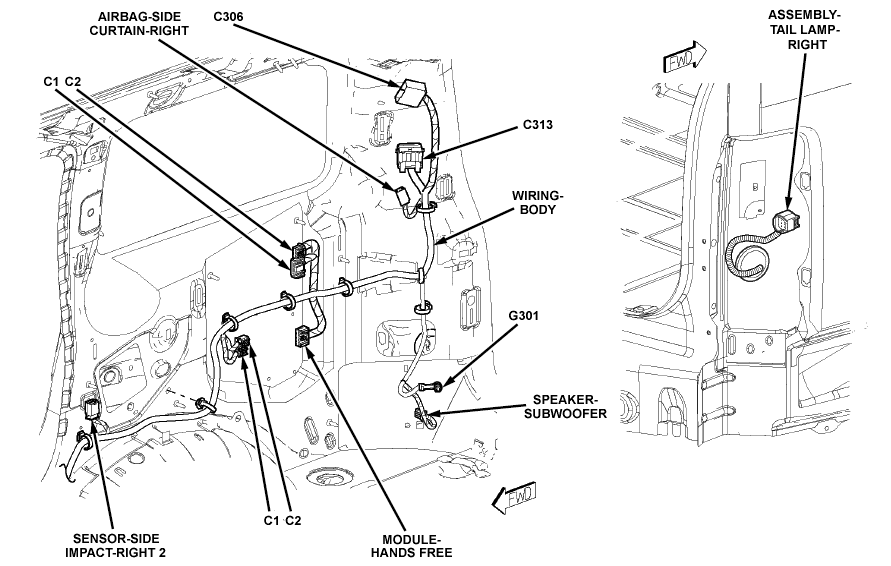

| Hands Free Module | Behind right quarterpanel. See Figure. |
| Inverter Module | Under right rear seat. |
| Memory Seat Module | Under driver's seat. |
| Occupant Classification Module | Under front passenger's seat. See Figure. |

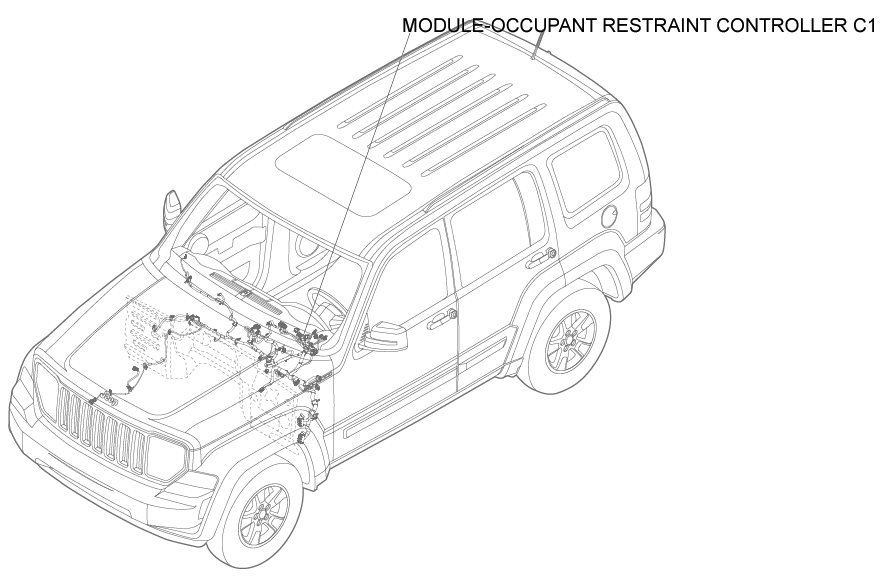

| Occupant Restraint Controller Module | Under center console. See Figure. |

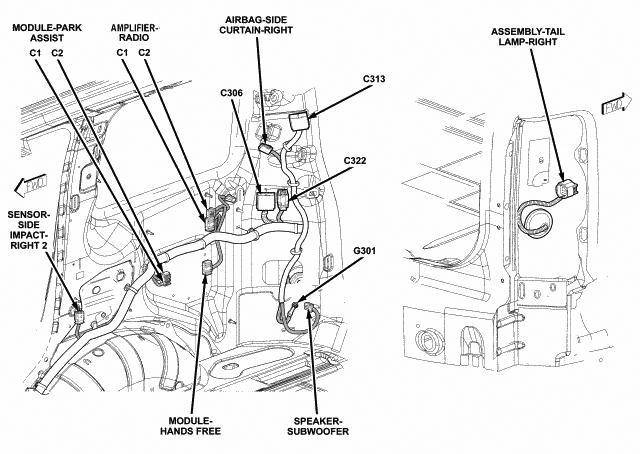

| Park Assist Module | Behind right quarterpanel. See Figure. |

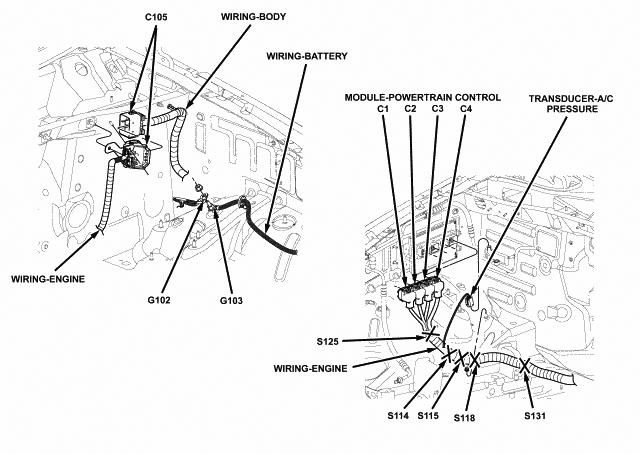

| Powertrain Control Module | Right rear of engine compartment. See Figure. |

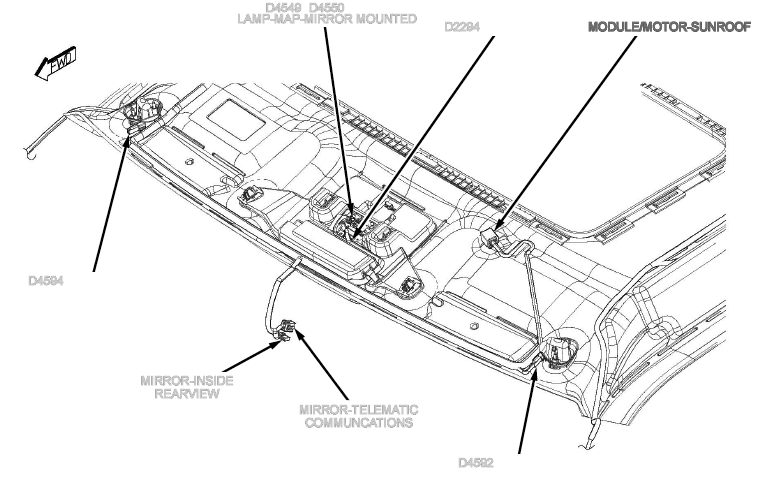

| Sunroof Motor Module | Front of roof. See Figure. |
| Totally Integrated Power Module | Left front of engine compartment. See Figure. |

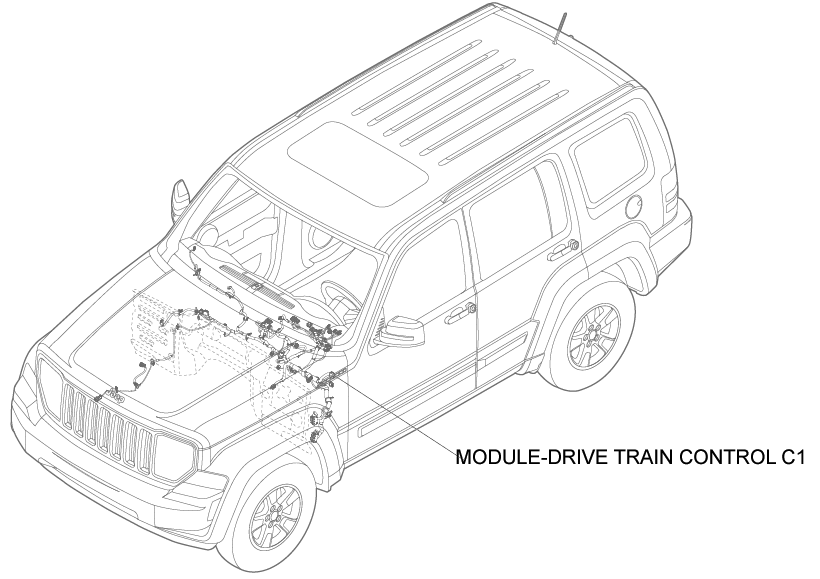

| Drive Train Control Module | Left side of instrument panel. See Figure. |
