Diagnostic Test

CHECK TO SEE IF THE DTC IS ACTIVE
1. With the scan tool, read Transmission DTCs.
  Is the status Active or is the Starts Since Set counter 2 or less for this DTC?

  Yes
  - Go To 2.
  No
  - Go To 5.
CHECK IF SPEED SENSOR DTCS ARE PRESENT
1. With the scan tool, read Transmission DTCs.
  Are there any Active or Stored Speed Sensor DTCs also present?

  Yes
  - Refer to Diagnosis and Testing and perform the appropriate diagnostic procedure.
  No
  - Go To 3.
CHECK THE (T20) LINE PRESSURE SOLENOID CONTROL CIRCUIT

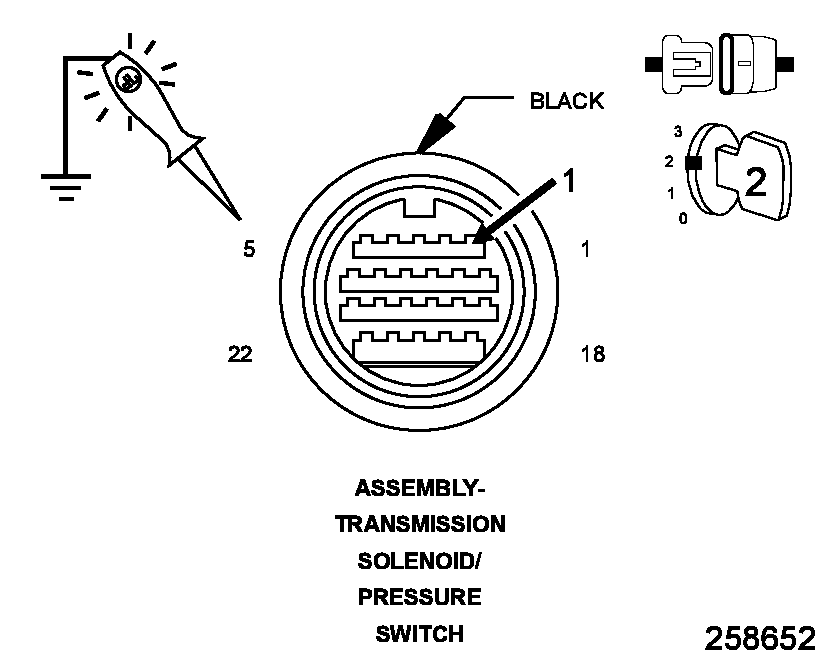

Fig 1: Checking Line Pressure Solenoid Control Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
3. Ignition on, engine not running.
4. With the scan tool, actuate the Line Pressure Solenoid (PL).
5. Using a 12-volt test light connected to ground, check the (T20) Line Pressure Solenoid Control circuit in the Transmission Solenoid/Pressure Switch Assembly harness connector.
  NOTE:
  The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

  Does the test light illuminate brightly?

  Yes
  - Replace the Valve Body in accordance with the Service Information.
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Go To 4.
CHECK THE TRANSMISSION CONTROL MODULE

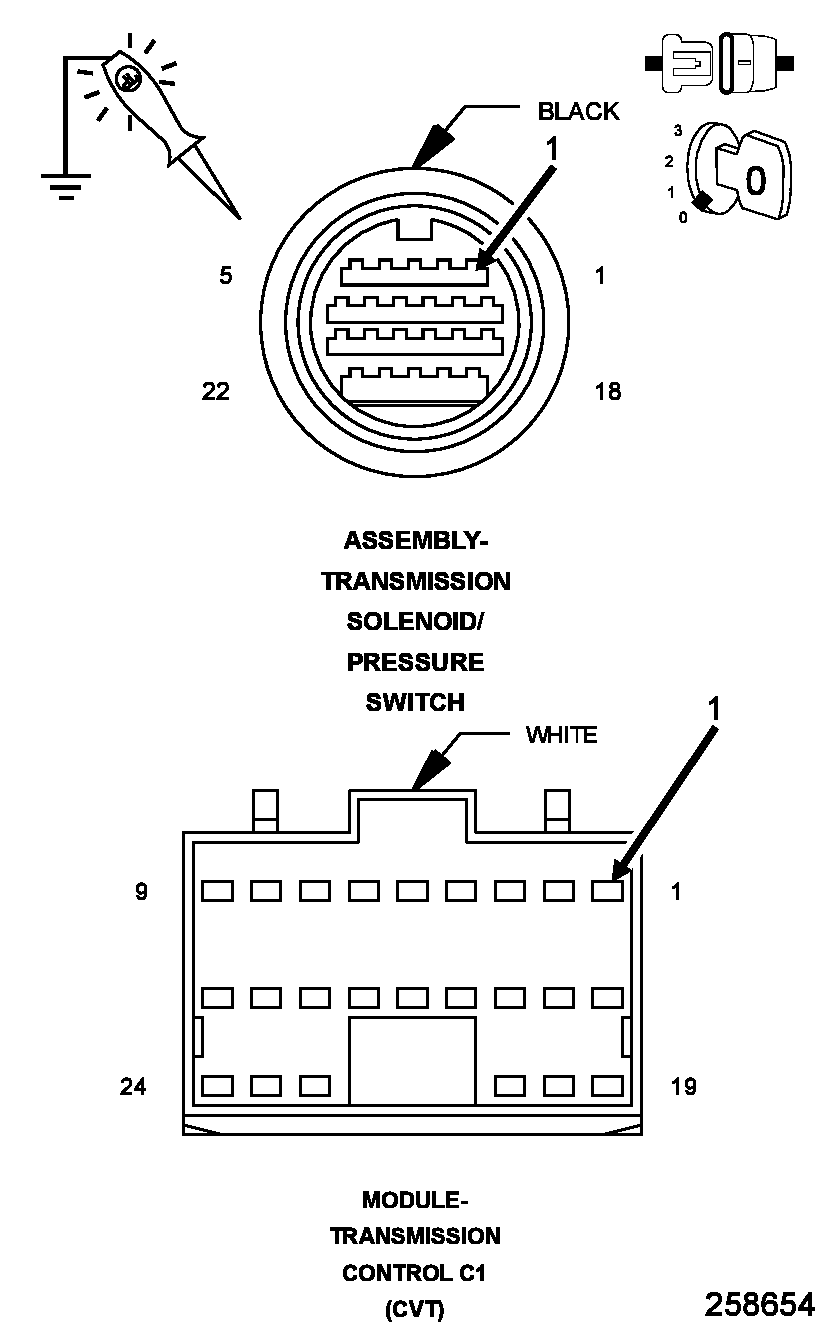

Fig 2: Checking Transmission Control Module
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the TCM C1 harness connector.
3. Connect a jumper wire between the (T20) Line Pressure Solenoid Control circuit in the TCM C1 harness connector and B(+).
4. Using a 12-volt test light connected to ground, check the (T20) Line Pressure Solenoid Control circuit in the Transmission Solenoid/Pressure Switch Assembly harness connector.
  Does the test light illuminate brightly?

  Yes
  - Using the schematics as a guide, check the Transmission Control Module (TCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for any Service Bulletins for possible causes that may apply. If no problems are found, replace the TCM in accordance with the Service Information.
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Repair the (T20) Line Pressure Solenoid Control circuit for an open (high resistance).
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Test Complete.
