T355 Manual Transmission (Service Information): Installation: Installation

Fig 1: Modular Clutch Assy

Courtesy of CHRYSLER LLC

1. Install clutch module (1) (if equipped) onto input shaft.

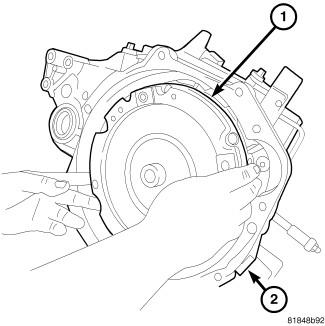

   Fig 2: Support Trans And Engine

   Courtesy of CHRYSLER LLC
2. Install transaxle (1) into position.

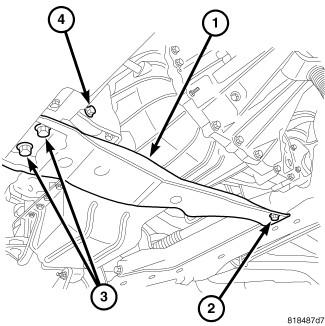

   Fig 3: Lower Bell Housing Bolts

   Courtesy of CHRYSLER LLC
3. Install transaxle-to-engine lower (1) mounting bolts and tighten to 48 N.m (35 ft. lbs.).
4. If equipped, install the PTU.

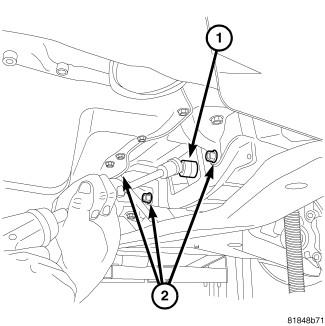

   Fig 4: Rear Trans To Frame Mount

   Courtesy of CHRYSLER LLC
5. Install the rear transmission mount bracket (2) and bolts, tighten to 68 N.m (50 ft. lbs.).
6. Install the rear transmission mount (1) and bolts, tighten to 68 N.m (50 ft. lbs.).
7. Install the rear transmission mount through bolt (4) at this time and tighten to 68 N.m (50 ft. lbs.).

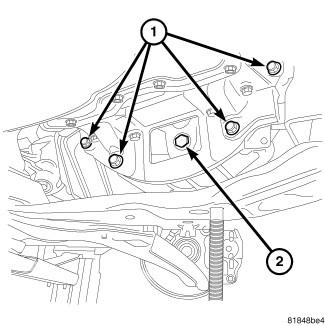

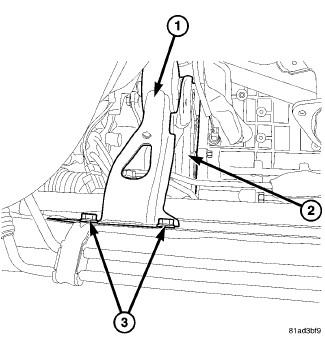

   Fig 5: Transmission Cross Member

   Courtesy of CHRYSLER LLC
8. Install front mount bracket to transmission and tighten to 68 N.m (50 ft. lbs.).
9. Install the transmission crossmember and tighten to 68 N.m (50 ft. lbs.).

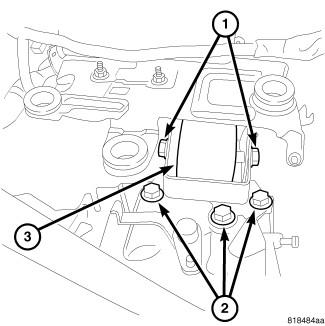

   Fig 6: Upper Mount

   Courtesy of CHRYSLER LLC
10. Lower the vehicle on hoist.
11. Raise engine and transaxle until upper mount bracket aligns with upper mount. Install mount bolts (2) and tighten to 68 N.m (50 ft. lbs.).
12. Tighten through bolt to 68 N.m (50 ft. lbs.).
13. Remove jack.
    Fig 7: Modular Clutch To Flex Plate Bolts

    Courtesy of CHRYSLER LLC
14. Raise the vehicle on the hoist.
15. Install four (4) modular clutch-to-driveplate bolts (4). Align drive plate and modular clutch alignment marks placed upon disassembly. Start with tight-tolerance (slotted) hole, install and torque bolts to 88 N.m (65 ft. lbs.).
16. Install starter motor, make sure to fasten ground cable to upper starter bolt. Refer to STARTER, Installation .
17. Install bell housing dust cover.
18. Install both front axle driveshafts. Refer to Installation or Installation or Installation .

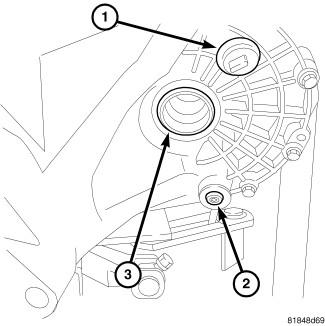

    Fig 8: Drain And Fill Plugs

    Courtesy of CHRYSLER LLC
19. Fill transaxle with suitable amount of fluid (2.7 liters). Refer to STANDARD PROCEDURE - DRAIN AND FILL .
20. Install the splash shields. Refer to SHIELD, Splash, Front Wheel House, Installation and SHIELD, Splash, Rear Wheelhouse, Installation .
21. Lower the vehicle.
22. Install the remaining top bell housing bolts and tighten to 48 N.m (35 ft. lbs.).
23. Connect the hydraulic clutch slave cylinder (1). An audible click should be heard. Verify connection by pushing and pulling quick connect.

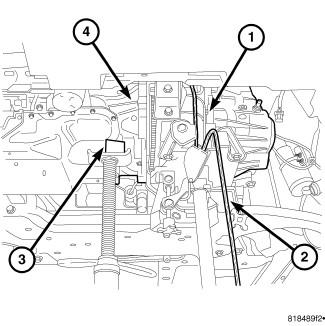

    Fig 9: Shiftier Cable Clips AT Bracket

    Courtesy of CHRYSLER LLC
24. Connect shift and selector cables (2) to shift lever. Install cables to bracket (1).

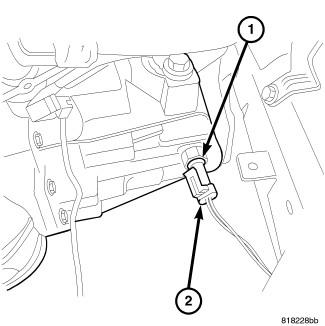

    Fig 10: Backup Switch Connector

    Courtesy of CHRYSLER LLC
25. Connect back-up lamp switch connector (1).
26. Connect the vehicle speed sensor connector if equipped.
27. Install battery and battery tray.
28. Install the air cleaner assembly.
29. Connect the battery cables.
30. Road test vehicle and inspect for leaks.
