Diagnostic Test

CHECK TO SEE IF THE DTC IS ACTIVE
1. With the scan tool, read Transmission DTCs.
  Is the status Active or is the Starts Since Set counter 2 or less for this DTC?

  Yes
  - Go To 2.
  No
  - Go To 4.
CHECK THE (T20) LINE PRESSURE SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND

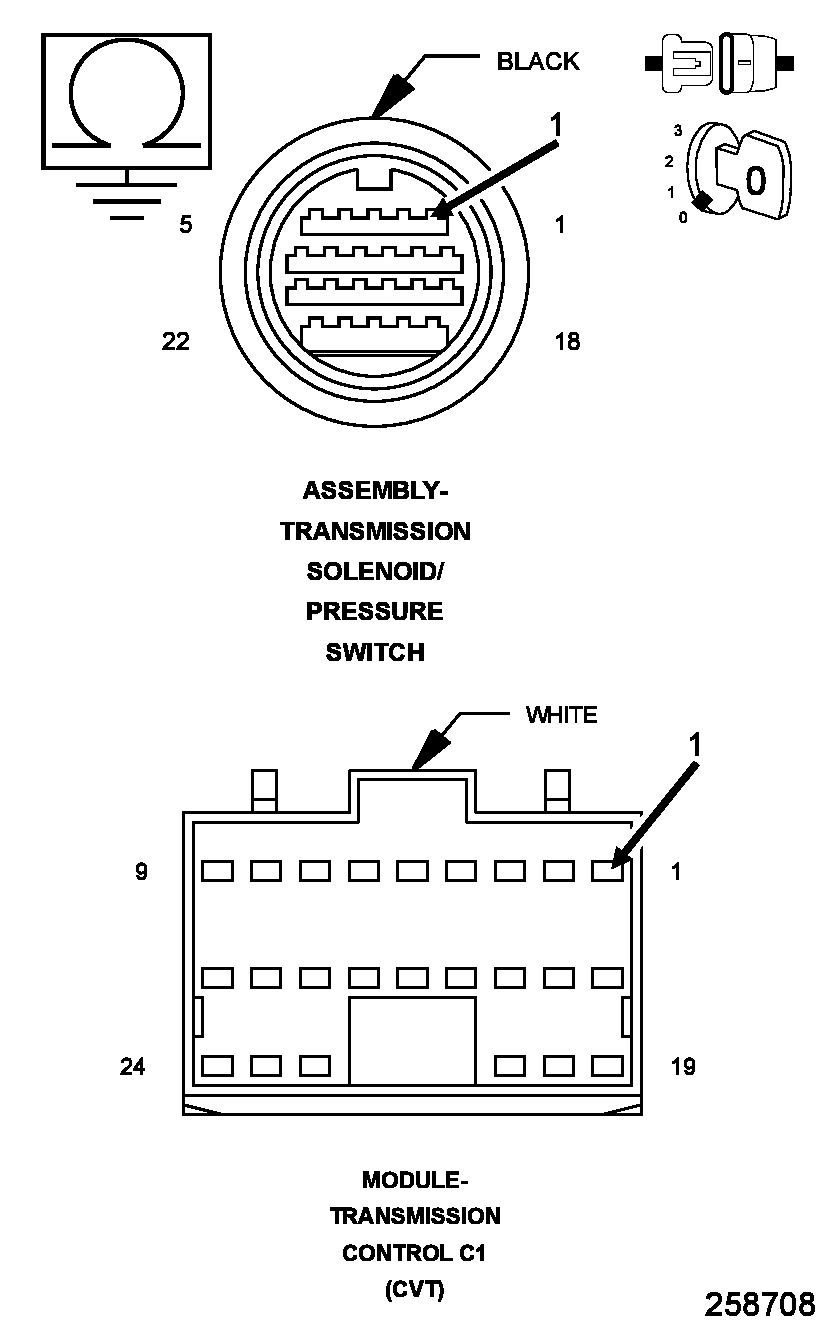

Fig 1: Measuring Resistance Between Ground & Line Pressure Solenoid Control Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the TCM C1 harness connector.
3. Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
4. Measure the resistance between ground and the (T20) Line Pressure Solenoid Control circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (T20) Line Pressure Solenoid Control circuit for a short to ground.
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Go To 3.
CHECK THE (T20) LINE PRESSURE SOLENOID CONTROL CIRCUIT

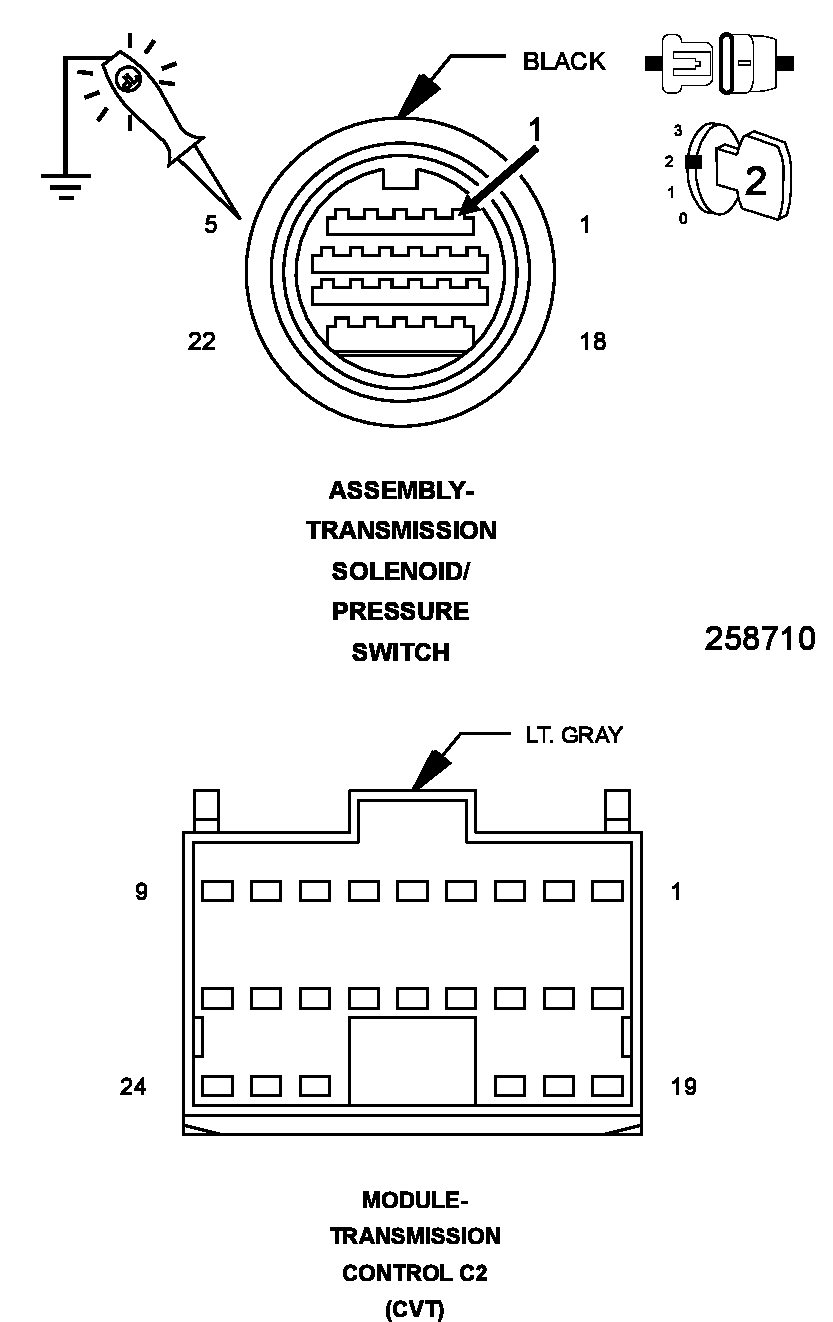

Fig 2: Checking Line Pressure Solenoid Control Circuit Using Test Light Connected To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Reconnect the TCM C1 harness connector.
3. Ignition on, engine not running.
4. With the scan tool actuate the Line Pressure Solenoid.
5. Using a test light connected to ground, check the (T20) Line Pressure Solenoid Control circuit in the Transmission Solenoid/Pressure Switch Assembly harness connector.
  NOTE:
  The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

  Does the test light illuminate brightly?

  Yes
  - Replace the Line Pressure Solenoid (Valve Body) in accordance with the Service Information.
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Using the schematics as a guide, check the Transmission Control Module (TCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for any Service Bulletins for possible causes that may apply. If no problems are found, replace the TCM in accordance with the Service Information.
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the CVT VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Test Complete.
