Power Seat Memory Switch - Removal






REMOVAL





1. Disconnect and isolate the battery negative cable.

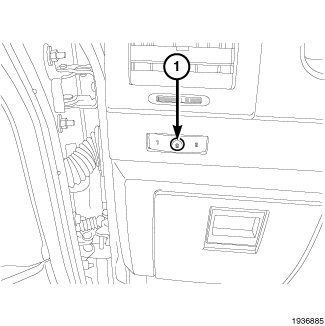

2. Remove trim panels/bezels as necessary to gain acces to the memory seat switch Instrument Cluster Bezel - Removal.

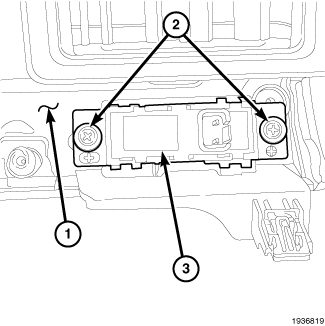

3. Remove the two fasteners (2).
4. Remove the memory switch (3) from the cluster bezel (1).
